Coleman 152a what do I need for a shade holder

Post your tech questions here, lots of knowledge available.
Post Reply
User avatar
Ohiohunter83
Senior Member
Posts: 109
Joined: Mon Jun 10, 2019 3:00 am

Coleman 152a what do I need for a shade holder

#1

Post by Ohiohunter83 »

I finally got my 152a cleaned up and running well. It came with a hanging rod that screws directly into the mixing chamber. My question is what do I need to attach a shade on it. My CQ had a short stud that I screwed on once I got the shade holder on. The shade holder listed on OCP says for CQ lamps. Is this also what I want for the 152a? Also can I just screw the hanging rod over whatever shade holder I get? Any guidance is greatly appreciated. Thanks Drew
Drew
"Colt makes a heavy firearm, and that's a fact."
User avatar
Tgarner01
Super Colemanaholic
Posts: 5880
Joined: Sun Nov 03, 2019 10:47 pm

Re: Coleman 152a what do I need for a shade holder

#2

Post by Tgarner01 »

Are you wanting to run a glass shade or a 355 globe with a parchment style shade?
Toby Garner, from SW Missouri
ICCC #1939
User avatar
Ohiohunter83
Senior Member
Posts: 109
Joined: Mon Jun 10, 2019 3:00 am

Re: Coleman 152a what do I need for a shade holder

#3

Post by Ohiohunter83 »

A glass shade...
Drew
"Colt makes a heavy firearm, and that's a fact."
User avatar
Hot_Diggity
Super Colemanaholic
Posts: 1927
Joined: Mon Jun 12, 2017 6:43 pm

Re: Coleman 152a what do I need for a shade holder

#4

Post by Hot_Diggity »

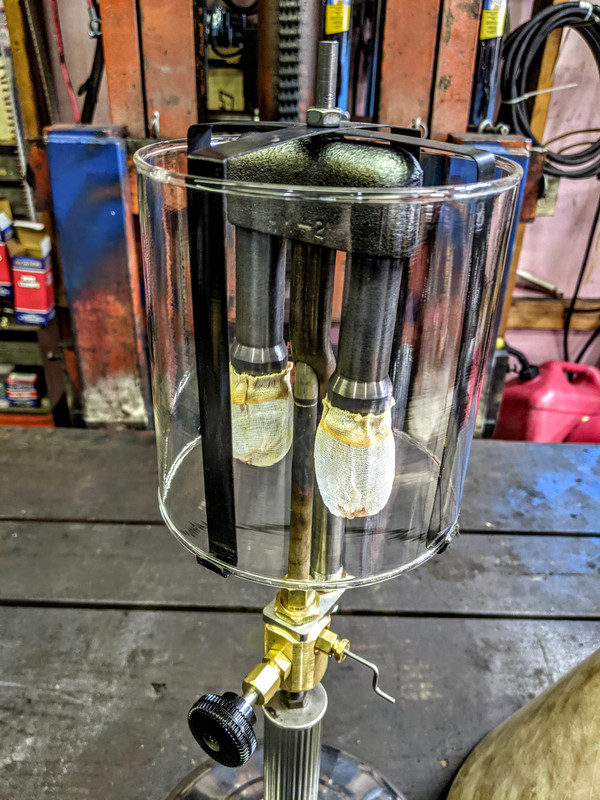

152a is a little narrow at the base to support a glass shade. It came with a parchment shade and 355 globe. The holders look like these.
Shades don't have to be original to be functional.
IMG_20210321_193932 (1).jpg
You do not have the required permissions to view the files attached to this post.
Chuck, 3/61, ICCC 1689
Milspec Syndicate #510
Coleman 275 Appreciation Syndicate #0510
Coleman Quick Lite Crew #12
BernzOmatic Appreciation Club #510
Coleman Slant Saver #510
Frank Appreciation Syndicate Member #2
Tinker, Toy maker, Trash picker, Wickie, Lamp loon
User avatar
Tgarner01
Super Colemanaholic
Posts: 5880
Joined: Sun Nov 03, 2019 10:47 pm

Re: Coleman 152a what do I need for a shade holder

#5

Post by Tgarner01 »

I agree with Chuck. It would be more stable running a parchment style shade, otherwise get your CQ holder and screw then slap a shade on it. It's yours too do what you please... Just show it off when your done 😉
Toby Garner, from SW Missouri
ICCC #1939
User avatar
Ohiohunter83
Senior Member
Posts: 109
Joined: Mon Jun 10, 2019 3:00 am

Re: Coleman 152a what do I need for a shade holder

#6

Post by Ohiohunter83 »

I have the globe holders and it has the hanging rod as well. What else will I need to use a parchment shade. Can I just screw the hanging rod through the center of the shade?
Drew
"Colt makes a heavy firearm, and that's a fact."
User avatar
Tgarner01
Super Colemanaholic
Posts: 5880
Joined: Sun Nov 03, 2019 10:47 pm

Re: Coleman 152a what do I need for a shade holder

#7

Post by Tgarner01 »

You'll need the correct screw in the burner, and a finial would be the ideal way to hold the shade. Here's a not very good example.


Toby Garner, from SW Missouri
ICCC #1939
Dmacp
Super Colemanaholic
Posts: 2992
Joined: Thu Dec 11, 2008 7:56 am

Re: Coleman 152a what do I need for a shade holder

#8

Post by Dmacp »

well there is a finial with a nut on it for the shade ring.
Dan
ICCC member #604
User avatar
Ohiohunter83
Senior Member
Posts: 109
Joined: Mon Jun 10, 2019 3:00 am

Re: Coleman 152a what do I need for a shade holder

#9

Post by Ohiohunter83 »

Can you still attach the hanging rod with the finial?
Drew
"Colt makes a heavy firearm, and that's a fact."
User avatar
Tgarner01
Super Colemanaholic
Posts: 5880
Joined: Sun Nov 03, 2019 10:47 pm

Re: Coleman 152a what do I need for a shade holder

#10

Post by Tgarner01 »

Ohiohunter83 wrote: Tue Apr 20, 2021 2:23 am Can you still attach the hanging rod with the finial?
Yes, it will go through the middle.
Toby Garner, from SW Missouri
ICCC #1939
User avatar
Ohiohunter83
Senior Member
Posts: 109
Joined: Mon Jun 10, 2019 3:00 am

Re: Coleman 152a what do I need for a shade holder

#11

Post by Ohiohunter83 »

What kind of burner stud will I need?
Drew
"Colt makes a heavy firearm, and that's a fact."
User avatar
Ohiohunter83
Senior Member
Posts: 109
Joined: Mon Jun 10, 2019 3:00 am

Re: Coleman 152a what do I need for a shade holder

#12

Post by Ohiohunter83 »

The rod I have screws directly into the mixing chamber.
Drew
"Colt makes a heavy firearm, and that's a fact."
User avatar
Tgarner01
Super Colemanaholic
Posts: 5880
Joined: Sun Nov 03, 2019 10:47 pm

Re: Coleman 152a what do I need for a shade holder

#13

Post by Tgarner01 »

Ohiohunter83 wrote: Tue Apr 20, 2021 3:01 am The rod I have screws directly into the mixing chamber.
These are like what I'm familiar with.

https://www.oldcolemanparts.com/product ... at=&page=1
Toby Garner, from SW Missouri
ICCC #1939
User avatar
Tgarner01
Super Colemanaholic
Posts: 5880
Joined: Sun Nov 03, 2019 10:47 pm

Re: Coleman 152a what do I need for a shade holder

#14

Post by Tgarner01 »





Toby Garner, from SW Missouri
ICCC #1939
User avatar
Ohiohunter83
Senior Member
Posts: 109
Joined: Mon Jun 10, 2019 3:00 am

Re: Coleman 152a what do I need for a shade holder

#15

Post by Ohiohunter83 »

That is awesome!! Thank you very much. I have never seen a close up picture of the way all of that goes together. That is the answer to all my questions. Thank you
Drew
"Colt makes a heavy firearm, and that's a fact."
User avatar
Tgarner01
Super Colemanaholic
Posts: 5880
Joined: Sun Nov 03, 2019 10:47 pm

Re: Coleman 152a what do I need for a shade holder

#16

Post by Tgarner01 »

Ohiohunter83 wrote: Wed Apr 21, 2021 12:03 am That is awesome!! Thank you very much. I have never seen a close up picture of the way all of that goes together. That is the answer to all my questions. Thank you
It wasn't that long ago I didn't know either. It's hard to find picture examples for us visual learners 😉
Toby Garner, from SW Missouri
ICCC #1939
User avatar
Jeepstircrazy
Serious Colemanaholic
Posts: 855
Joined: Tue Aug 18, 2020 11:28 pm

Re: Coleman 152a what do I need for a shade holder

#17

Post by Jeepstircrazy »

So for us visual guys Toby, what is the best way to remove one of those that broke off in the mixing chamber without ruining the threads? I'm thinking about heating and quenching to start....
Wayne signing off...

What's the lowest you'll take for this lantern?

          Today is a gift, that's why they call it the present.

"I'm not sure if I actually have freetime or if I just keep forgetting stuff!"
( Thanks for that one Uncle Sidney!) :D

And oh... I don't flip GPA's... I have gifted several though. :D
User avatar
Hot_Diggity
Super Colemanaholic
Posts: 1927
Joined: Mon Jun 12, 2017 6:43 pm

Re: Coleman 152a what do I need for a shade holder

#18

Post by Hot_Diggity »

Have you tried an electric engraver? Old vibrating ones work like a mini air hammer to rotate small broken pieces in the desired direction.
In the case of the burner, either way will do, as long as it comes out.
Chuck, 3/61, ICCC 1689
Milspec Syndicate #510
Coleman 275 Appreciation Syndicate #0510
Coleman Quick Lite Crew #12
BernzOmatic Appreciation Club #510
Coleman Slant Saver #510
Frank Appreciation Syndicate Member #2
Tinker, Toy maker, Trash picker, Wickie, Lamp loon
User avatar
Tgarner01
Super Colemanaholic
Posts: 5880
Joined: Sun Nov 03, 2019 10:47 pm

Re: Coleman 152a what do I need for a shade holder

#19

Post by Tgarner01 »

Jeepstircrazy wrote: Wed Apr 21, 2021 12:41 am So for us visual guys Toby, what is the best way to remove one of those that broke off in the mixing chamber without ruining the threads? I'm thinking about heating and quenching to start....
Wayne lucky for me I have a milling machine at my disposal. I've done a couple on lanterns with steel vent studs. I believe it was Dean that made a guide to screw into the air tube threads of the mixing chamber with correct drill size and tap to chase the threads...
Toby Garner, from SW Missouri
ICCC #1939
User avatar
Jeepstircrazy
Serious Colemanaholic
Posts: 855
Joined: Tue Aug 18, 2020 11:28 pm

Re: Coleman 152a what do I need for a shade holder

#20

Post by Jeepstircrazy »

Hot_Diggity wrote: Wed Apr 21, 2021 12:52 am Have you tried an electric engraver? Old vibrating ones work like a mini air hammer to rotate small broken pieces in the desired direction.
In the case of the burner, either way will do, as long as it comes out.
Would you heat it and quench it first? That seems to loosen crap up most times...
Wayne signing off...

What's the lowest you'll take for this lantern?

          Today is a gift, that's why they call it the present.

"I'm not sure if I actually have freetime or if I just keep forgetting stuff!"
( Thanks for that one Uncle Sidney!) :D

And oh... I don't flip GPA's... I have gifted several though. :D
User avatar
Hot_Diggity
Super Colemanaholic
Posts: 1927
Joined: Mon Jun 12, 2017 6:43 pm

Re: Coleman 152a what do I need for a shade holder

#21

Post by Hot_Diggity »

Heating and quenching and maybe a shot of oil on the still warm pieces would help.

I've saved a bunch of components with the engraver trick.
Chuck, 3/61, ICCC 1689
Milspec Syndicate #510
Coleman 275 Appreciation Syndicate #0510
Coleman Quick Lite Crew #12
BernzOmatic Appreciation Club #510
Coleman Slant Saver #510
Frank Appreciation Syndicate Member #2
Tinker, Toy maker, Trash picker, Wickie, Lamp loon
User avatar
Ohiohunter83
Senior Member
Posts: 109
Joined: Mon Jun 10, 2019 3:00 am

Re: Coleman 152a what do I need for a shade holder

#22

Post by Ohiohunter83 »

What is the purpose of the finial? It looks like it just slides over the rod and doesn't thread into anything.
Drew
"Colt makes a heavy firearm, and that's a fact."
User avatar
Hot_Diggity
Super Colemanaholic
Posts: 1927
Joined: Mon Jun 12, 2017 6:43 pm

Re: Coleman 152a what do I need for a shade holder

#23

Post by Hot_Diggity »

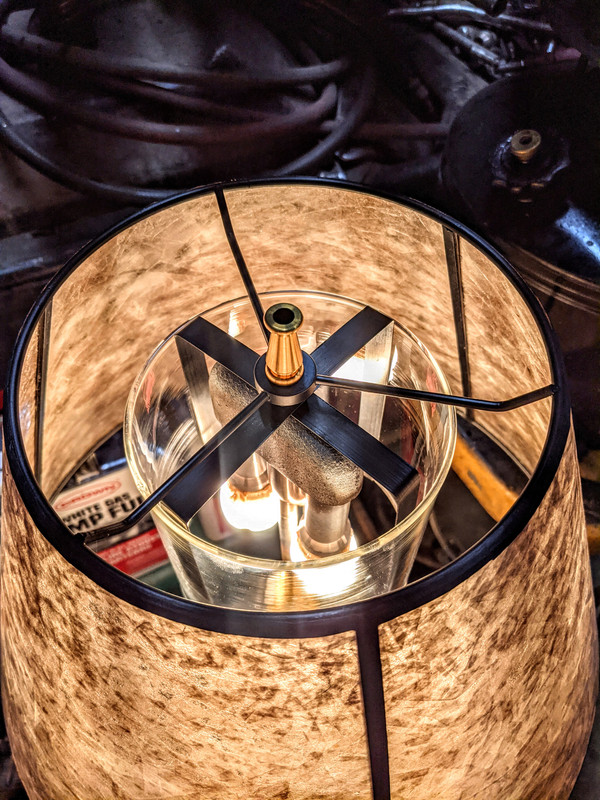

The finial is two pieces and screws together from either side of the shade spider. It stays with the shade and because of its length, keeps the shade from rocking back and forth.
https://www.oldcolemanparts.com/search. ... _https=yes

One of the beauties of this design is that you can run a shade that's a little too long by using a spacer to lift it higher on the handing rod. I Run a straight 8" shade that is 3" too long, but works just fine with a piece of brass tubing to hold it at the right height. Opens up lots of "period incorrect" but perfectly functional shade options.
You do not have the required permissions to view the files attached to this post.
Chuck, 3/61, ICCC 1689
Milspec Syndicate #510
Coleman 275 Appreciation Syndicate #0510
Coleman Quick Lite Crew #12
BernzOmatic Appreciation Club #510
Coleman Slant Saver #510
Frank Appreciation Syndicate Member #2
Tinker, Toy maker, Trash picker, Wickie, Lamp loon
User avatar
Ohiohunter83
Senior Member
Posts: 109
Joined: Mon Jun 10, 2019 3:00 am

Re: Coleman 152a what do I need for a shade holder

#24

Post by Ohiohunter83 »

Ok. It's all clear to me now. Thank you everyone. Just one more question. Where can I obtain a finial? It doesn't have to be original as I know they can fetch a pretty penny.
Drew
"Colt makes a heavy firearm, and that's a fact."
User avatar
Ohiohunter83
Senior Member
Posts: 109
Joined: Mon Jun 10, 2019 3:00 am

Re: Coleman 152a what do I need for a shade holder

#25

Post by Ohiohunter83 »

I found them on OCP....
Drew
"Colt makes a heavy firearm, and that's a fact."
User avatar
Hot_Diggity
Super Colemanaholic
Posts: 1927
Joined: Mon Jun 12, 2017 6:43 pm

Re: Coleman 152a what do I need for a shade holder

#26

Post by Hot_Diggity »

Our host has nice reproductions. (Click the link)

https://www.oldcolemanparts.com/search. ... _https=yes
Chuck, 3/61, ICCC 1689
Milspec Syndicate #510
Coleman 275 Appreciation Syndicate #0510
Coleman Quick Lite Crew #12
BernzOmatic Appreciation Club #510
Coleman Slant Saver #510
Frank Appreciation Syndicate Member #2
Tinker, Toy maker, Trash picker, Wickie, Lamp loon
