Coleman 249 scout generator

#1

Post by MG »

I've recently come across an early 249 scout missing its generator, i have posted some wanted adds but is there an equivalent generator from another lantern that will fit please?
Thanks.
User avatar
SteveRetherford
Super Colemanaholic
Posts: 8791
Joined: Thu Dec 11, 2008 11:12 pm

Re: Coleman 249 scout generator

#2

Post by SteveRetherford »

the 249 gennys are getting harder to find and expensive BUT 237 gennys are plenty available and reasonably priced . dont know your skill level , but the 249 gennys is just a shortened 237 genny , same diameter different length . so ya cut down a 237 and re flare the bottom . my mind goes these place and i dont know but share them anyways
Steve , Keeper of the Light !!!
User avatar
Pancholoco1911
Super Colemanaholic
Posts: 2121
Joined: Fri Oct 11, 2019 4:17 pm

Re: Coleman 249 scout generator

#3

Post by Pancholoco1911 »

SteveRetherford wrote: Sat Jun 19, 2021 11:55 pm the 249 gennys are getting harder to find and expensive BUT 237 gennys are plenty available and reasonably priced . dont know your skill level , but the 249 gennys is just a shortened 237 genny , same diameter different length . so ya cut down a 237 and re flare the bottom . my mind goes these place and i dont know but share them anyways

No steve. The difference is at the top. You will need more skills than just cutting a 237. It will require cut and braze to get it in the proper length

Here is a picture
249 left and 237 right
You do not have the required permissions to view the files attached to this post.
Last edited by Pancholoco1911 on Sun Jun 20, 2021 12:52 am, edited 1 time in total.
~Pancho~

ICCC MEMBER #: 1993
User avatar
gpaguy
Colemanaholic
Posts: 421
Joined: Tue Dec 30, 2014 10:28 pm

Re: Coleman 249 scout generator

#4

Post by gpaguy »

Isn't Mike at OCP working on testing and reproducing 249 gen's..


John
User avatar
SteveRetherford
Super Colemanaholic
Posts: 8791
Joined: Thu Dec 11, 2008 11:12 pm

Re: Coleman 249 scout generator

#5

Post by SteveRetherford »

oh ya , the uppers goes down in size , its just the bottom that the same diameter , my bad LOL

ive gone senile
Steve , Keeper of the Light !!!
User avatar
Whitegas Extraordinaire
Super Colemanaholic
Posts: 2818
Joined: Sat Oct 21, 2017 2:11 pm

Re: Coleman 249 scout generator

#6

Post by Whitegas Extraordinaire »

Here’s them side by each.
My apologies for leading people astray!
You do not have the required permissions to view the files attached to this post.

Thank you!
Kevin

I may frighten easily!
My current shade is Coleman!!
To me a lamp without a shade is creepy!

ICCC # 1865

User avatar
Pancholoco1911
Super Colemanaholic
Posts: 2121
Joined: Fri Oct 11, 2019 4:17 pm

Re: Coleman 249 scout generator

#7

Post by Pancholoco1911 »

Pancholoco1911 wrote: Sun Jun 20, 2021 12:24 am
SteveRetherford wrote: Sat Jun 19, 2021 11:55 pm the 249 gennys are getting harder to find and expensive BUT 237 gennys are plenty available and reasonably priced . dont know your skill level , but the 249 gennys is just a shortened 237 genny , same diameter different length . so ya cut down a 237 and re flare the bottom . my mind goes these place and i dont know but share them anyways

No steve. The difference is at the top. You will need more skills than just cutting a 237. It will require cut and braze to get it in the proper length

Here is a picture
249 left and 237 right
I’ve updated my previous post with pictures SXS
~Pancho~

ICCC MEMBER #: 1993
MG
Senior Member
Posts: 125
Joined: Mon Feb 27, 2017 7:58 am

Re: Coleman 249 scout generator

#8

Post by MG »

Thanks for the replies, I have spoken to Rob at OCP and he said possibly six months for a new generator, maybe a used one will turn up hopefully,
It’s a 1938 Canadian model with a very short, triangular shaped handle/bail which, so far, I haven’t seen a picture of another, it doesn’t look homemade but possibly is.
Guff
Super Colemanaholic
Posts: 1186
Joined: Sun Mar 06, 2011 5:07 am

Re: Coleman 249 scout generator

#9

Post by Guff »

A triangular shaped bail would not be original. A 1938 model CA 249 Scout would have the normal looped 242A, 242K, 242B bail type.
1938 is the first year of production for a Canadian 249 Scout. Does your's have a letter eg. A,B, C, or D for the month period, or a number?. The earliest one I have seen is C 38.

Keith.
MG
Senior Member
Posts: 125
Joined: Mon Feb 27, 2017 7:58 am

Re: Coleman 249 scout generator

#10

Post by MG »

I'd best keep an eye out for a spare then although i do quite like the one fitted, i expect it wouldn't take long to get burnt knuckles in use though!

Yes it has a C 38 stamped on it.
MG
Senior Member
Posts: 125
Joined: Mon Feb 27, 2017 7:58 am

Re: Coleman 249 scout generator

#11

Post by MG »

I was going to add a couple of pictures but it says file too large and i don't know how to resize it so i've given up :lol:
User avatar
Tgarner01
Super Colemanaholic
Posts: 6864
Joined: Sun Nov 03, 2019 10:47 pm

Re: Coleman 249 scout generator

#12

Post by Tgarner01 »

MG wrote: Sun Jun 20, 2021 10:36 am I was going to add a couple of pictures but it says file too large and i don't know how to resize it so i've given up :lol:
What are you working with Android, Apple, or PC?
Toby Garner, from SW Missouri
ICCC #1939
MG
Senior Member
Posts: 125
Joined: Mon Feb 27, 2017 7:58 am

Re: Coleman 249 scout generator

#13

Post by MG »

Apple or PC.
Guff
Super Colemanaholic
Posts: 1186
Joined: Sun Mar 06, 2011 5:07 am

Re: Coleman 249 scout generator

#14

Post by Guff »

I'm not sure where you are located, but if you can get hold of an Ash Flash lantern (Made in Hong Kong) they have generators which I think are the same diameter and length as the Coleman 249 one. I'm a long way, 400km, from my collection at present to be able to check those two things for you.
However, the A/F, one from memory, does not have a screw in jet, but has a jet orifice in the top part of the generator. That orifice size may be different to the 249 jet orifice, as the A/F is a Coleman fuel lantern.
You may be able to drill out the top A/F orifice and thread it to take a 249 jet, and of course obtain or make the two 249 coils for inside the generator.
Depending where you are located of course.
It's fairly easy to find an A/F in countries like Australia and Canada, but maybe not where you are located. Just a thought.

Keith.
MG
Senior Member
Posts: 125
Joined: Mon Feb 27, 2017 7:58 am

Re: Coleman 249 scout generator

#15

Post by MG »

Thanks for that advice, i am UK based and it doesn't seem as though there are that many Ash Flash lanterns or spares over here, but if a used 249 genny doesn't turn up then that may be an option, the two coils actually came with the lantern but sadly nothing else that's needed.
User avatar
SteveRetherford
Super Colemanaholic
Posts: 8791
Joined: Thu Dec 11, 2008 11:12 pm

Re: Coleman 249 scout generator

#16

Post by SteveRetherford »

i have a parts 2 mantle ashflash parts lantern hanging in the garage , ill take a look at the genny n compare .
Steve , Keeper of the Light !!!
User avatar
SteveRetherford
Super Colemanaholic
Posts: 8791
Joined: Thu Dec 11, 2008 11:12 pm

Re: Coleman 249 scout generator

#17

Post by SteveRetherford »

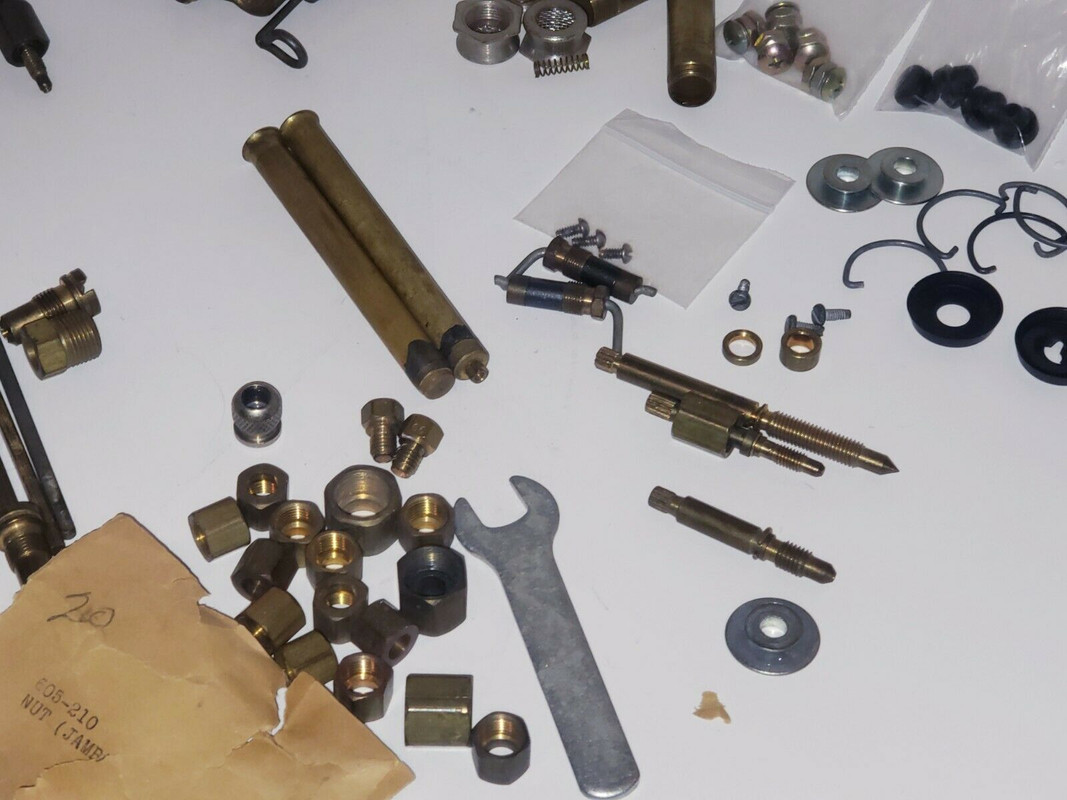

i actualy see 2 249 generators in a lot on the bay , but he is asking 100 for the lot . just might be worth it today . comes witha quick lite as well . i have had my eye on this for a few months now .

edit , with my glasses on it looks like one might be the ashflash as i see no gas tip ???


https://www.ebay.com/itm/402671498911?h ... Sw7hJgFjV4
Steve , Keeper of the Light !!!
MG
Senior Member
Posts: 125
Joined: Mon Feb 27, 2017 7:58 am

Re: Coleman 249 scout generator

#18

Post by MG »

It looks as if there is a chance of me getting hold of a 249 generator but thank you all very much for your help.
User avatar
SteveRetherford
Super Colemanaholic
Posts: 8791
Joined: Thu Dec 11, 2008 11:12 pm

Re: Coleman 249 scout generator

#19

Post by SteveRetherford »

so i email the seller of that lot of coleman parts and ask if they would sell me just the 249 genny for 20 and they said yes :-) cant be shy !!!

another turned up on the bay NOS this morning for like 60 or 70 clams !!!
Steve , Keeper of the Light !!!
MG
Senior Member
Posts: 125
Joined: Mon Feb 27, 2017 7:58 am

Re: Coleman 249 scout generator

#20

Post by MG »

Nice!
Guff
Super Colemanaholic
Posts: 1186
Joined: Sun Mar 06, 2011 5:07 am

Re: Coleman 249 scout generator

#21

Post by Guff »

SteveRetherford wrote: Sun Jun 20, 2021 2:09 pm i have a parts 2 mantle ashflash parts lantern hanging in the garage , ill take a look at the genny n compare .
Hey Steve, did you get time to compare the 249 generator with the Ash Flash one. Are they the same diameter and length as i think they are?. I know the tip/jet is not the same.
I'm still way up north and won't get back home and my collection for another week.

Keith.
User avatar
SteveRetherford
Super Colemanaholic
Posts: 8791
Joined: Thu Dec 11, 2008 11:12 pm

Re: Coleman 249 scout generator

#22

Post by SteveRetherford »

OK Keith , had to practically tear it apart to get that genny off :-) ya its pretty much dead on same length shell , if you drilled n tapped it for a gas tip it would be a pretty nice substitute shell , but the pricker has that agm style connection not a hook on it . inside looks like asbestos wrapped hollow spring .

hope you two are doing well down there ?
Steve , Keeper of the Light !!!
Guff
Super Colemanaholic
Posts: 1186
Joined: Sun Mar 06, 2011 5:07 am

Re: Coleman 249 scout generator

#23

Post by Guff »

Thanks for confirming that, Steve.
That gives me another option for making a custom 249 generator should the need arise. The fat tube is the hard part to find, as I have plenty of correct new 249 gas tips I bought from Mike some time ago.

Actually another source for making a custom 249 generator down here is to use an Austramax generator tube. Those ones are are the same dimeter as the 249 but slightly longer. So you need to cut a bit off the bottom and reflare it to make it the same length as a 249 one.
Easy to find an Austramax generator down here but not up in So Cal where you are.

Keith.
User avatar
Pancholoco1911
Super Colemanaholic
Posts: 2121
Joined: Fri Oct 11, 2019 4:17 pm

Re: Coleman 249 scout generator

#24

Post by Pancholoco1911 »

Also if I’m not wrong the 249 generator uses the same pricker as the t66 generator
~Pancho~

ICCC MEMBER #: 1993
User avatar
SteveRetherford
Super Colemanaholic
Posts: 8791
Joined: Thu Dec 11, 2008 11:12 pm

Re: Coleman 249 scout generator

#25

Post by SteveRetherford »

this is not my pic im lazy , but it shows em side by side for a pretty good comparison :-) this seller sold me the one on the right for 20 clams including shipping :-) i hope we communicated good enough that i get the right one LOL

Steve , Keeper of the Light !!!
User avatar
SteveRetherford
Super Colemanaholic
Posts: 8791
Joined: Thu Dec 11, 2008 11:12 pm

Re: Coleman 249 scout generator

#26

Post by SteveRetherford »

well , the seller of the generator wrote me telling me the pricker was missing and it only had springs inside no packing . for 20 clams i said send it anyways , that included the shipping .
Steve , Keeper of the Light !!!
User avatar
Whitegas Extraordinaire
Super Colemanaholic
Posts: 2818
Joined: Sat Oct 21, 2017 2:11 pm

Re: Coleman 249 scout generator

#27

Post by Whitegas Extraordinaire »

SteveRetherford wrote: Wed Jun 23, 2021 2:12 pm well , the seller of the generator wrote me telling me the pricker was missing and it only had springs inside no packing . for 20 clams i said send it anyways , that included the shipping .
Feel bad you had to dig out your 1010. I have one sitting in my desk!

Thank you!
Kevin

I may frighten easily!
My current shade is Coleman!!
To me a lamp without a shade is creepy!

ICCC # 1865

User avatar
SteveRetherford
Super Colemanaholic
Posts: 8791
Joined: Thu Dec 11, 2008 11:12 pm

Re: Coleman 249 scout generator

#28

Post by SteveRetherford »

i called it a parts lantern , but all its missing is a globe . this one is a Roddy not an ashflash .... likely put in CL or the bay today
Steve , Keeper of the Light !!!
User avatar
SteveRetherford
Super Colemanaholic
Posts: 8791
Joined: Thu Dec 11, 2008 11:12 pm

Re: Coleman 249 scout generator

#29

Post by SteveRetherford »

i get a nice note from the ebay seller saying because the 249 genny was missing the pricker they refunded 10 of the 20 dollar payment .... so i got it for 10 bucks including the ride :-)
Steve , Keeper of the Light !!!
Glassman
Member
Posts: 72
Joined: Mon Aug 21, 2017 2:04 am

Re: Coleman 249 scout generator

#30

Post by Glassman »

MG wrote: Sun Jun 20, 2021 10:36 am I was going to add a couple of pictures but it says file too large and i don't know how to resize it so i've given up :lol:
I use IMGUR to post pics. My phone store all my pics in google pics and I have to do is open the pic in photo's, then drag and drop in IMGUR. The just click on the proper link on the side for forums and paste it in your post here.

Here is a sample, took all of 15 seconds.




RAndy
Randy
Harrisonville, Mo.
Looking for anything 2/43

User avatar
SteveRetherford
Super Colemanaholic
Posts: 8791
Joined: Thu Dec 11, 2008 11:12 pm

Re: Coleman 249 scout generator

#31

Post by SteveRetherford »

just noticed OCP has a bunch of the ashflash gennys similar size to the 249 genny . havent heard much about the OCP 249 gennys being made up ????

https://www.oldcolemanparts.com/product ... at=&page=1
Steve , Keeper of the Light !!!
User avatar
Whitegas Extraordinaire
Super Colemanaholic
Posts: 2818
Joined: Sat Oct 21, 2017 2:11 pm

Re: Coleman 249 scout generator

#32

Post by Whitegas Extraordinaire »

SteveRetherford wrote: Thu Jul 22, 2021 6:58 pm just noticed OCP has a bunch of the ashflash gennys similar size to the 249 genny . havent heard much about the OCP 249 gennys being made up ????

https://www.oldcolemanparts.com/product ... at=&page=1
Mr. Wilson’s beta generator was running well in Gettysburg!

Thank you!
Kevin

I may frighten easily!
My current shade is Coleman!!
To me a lamp without a shade is creepy!

ICCC # 1865

User avatar
Chucker
Moderator
Posts: 8030
Joined: Wed Aug 21, 2013 2:37 am

Re: Coleman 249 scout generator

#33

Post by Chucker »

SteveRetherford wrote: Thu Jul 22, 2021 6:58 pm just noticed OCP has a bunch of the ashflash gennys similar size to the 249 genny . havent heard much about the OCP 249 gennys being made up ????

https://www.oldcolemanparts.com/product ... at=&page=1
Steve,
Have you miked (micrometer) the Ash Flash gen vs. the 249?
Chuck
