228E 3 52 Disassembly

#1

Post by Madcap »

I'm definitely new yet and still not up to speed on some of the techniques for safe removal of certain parts.

I need to remove the tip cleaner body from a 60 sixty year old 228E in order to remove the frame and collar. I watched Frank's video on Old Town Coleman and finally got one off a 220E but had to use a crescent wrench and damaged it. This old 288 seems even tighter. I don't have a lantern vice and so far heat and penetrant hasn't had any effect.
Any suggestions appreciated -

edit:228E is correct - thanks
You do not have the required permissions to view the files attached to this post.
Last edited by Madcap on Sat Apr 03, 2021 5:51 pm, edited 2 times in total.
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
bngreenchev
Senior Member
Posts: 188
Joined: Fri Dec 08, 2017 10:49 pm

Re: 228E 3 52 Disassembly

#2

Post by bngreenchev »

Are you referring to this part but on a 288?
You do not have the required permissions to view the files attached to this post.
User avatar
Kgam1020
Super Colemanaholic
Posts: 2054
Joined: Tue Apr 14, 2020 1:36 pm

Re: 228E 3 52 Disassembly

#3

Post by Kgam1020 »

I think he is talking about a 228E.
Ken.
Looking for Bday lanterns, 10/83, 11/84 and 10/2011.
Milspec Syndicate member #1020
User avatar
Kgam1020
Super Colemanaholic
Posts: 2054
Joined: Tue Apr 14, 2020 1:36 pm

Re: 228E 3 52 Disassembly

#4

Post by Kgam1020 »

I always thought once you removed the tip cleaner assembly the eccentric block just slid out of the housing.? I haven't had to remove one myself yet..
Ken.
Looking for Bday lanterns, 10/83, 11/84 and 10/2011.
Milspec Syndicate member #1020
TwoCanoes
Serious Colemanaholic
Posts: 620
Joined: Mon Feb 25, 2019 10:27 pm

Re: 228E 3 52 Disassembly

#5

Post by TwoCanoes »

Here's the setup I used until I made a fount vice. Make sure the strap wrench is gripping the thick, lower edge of the fount. If it slips up onto the side of the fount, you're likely to dent the fount. The strap wrench should be pretty cheap at a hardware store. A monkey wrench or Ford wrench is perfect for this job. I have a couple, and the jaws on both are narrow enough to grip the tip cleaner assembly without damaging the threads into which the tip cleaning lever goes. Protect the generator mounting threads by threading on the nut. By the way, there are easy, relatively cheap fount vice designs that have been posted in the past.
You do not have the required permissions to view the files attached to this post.
Stewart
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#6

Post by Madcap »

Stewart - I think you may have the answer for now. I've never noticed a strap wrench anywhere before but soon as I can find one I'll look forward to trying it. I''ll get back with the results soon I hope.
Thanks all
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
zoomkat
Super Colemanaholic
Posts: 1710
Joined: Mon Sep 28, 2015 11:17 pm

Re: 228E 3 52 Disassembly

#7

Post by zoomkat »

"I need to remove the tip cleaner body from a 60 sixty year old 288E in order to remove the frame and collar. I watched Frank's video on Old Town Coleman and finally got one off a 220E but had to use a crescent wrench and damaged it."

Have you loosened the screw holding the burner tubes so the burner tubes can be removed for more access?
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#8

Post by Madcap »

"Have you loosened the screw holding the burner tubes so the burner tubes can be removed for more access?"

No, I haven't but will and maybe allow more access.....thanks
Soon as I have a chance to look for a strap wrench I give that a try too.
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
adkbill
Colemanaholic
Posts: 454
Joined: Sat Apr 09, 2011 12:41 am

Re: 228E 3 52 Disassembly

#9

Post by adkbill »

Many of the more seasoned members of this forum have probably seen this before,
however I will add my two cents that the best bang for the buck in fount vises
is an old school Workmate Deluxe.
The center pegs are prefect for 220-sized founts and smaller founts can be secured with shims.
Some of the other Workmates have different peg patterns so this one with the foot-stand is the one I recommend.
Usually can be picked up cheap at yard sales
Workmate Fount Vise 220 20.jpg
Workmate Deluxe All rs 10X.jpg
You do not have the required permissions to view the files attached to this post.
Bill H ICCC #1017
Sears Collectors Club #5
G-mod Syndicate #002
TwoCanoes
Serious Colemanaholic
Posts: 620
Joined: Mon Feb 25, 2019 10:27 pm

Re: 228E 3 52 Disassembly

#10

Post by TwoCanoes »

And here's the benchtop Workmate I use. I swap out the plywood jaws depending on the size of the fount.
You do not have the required permissions to view the files attached to this post.
Stewart
User avatar
Mister_Wilson
Super Colemanaholic
Posts: 1817
Joined: Thu Jan 21, 2016 2:10 am

Re: 228E 3 52 Disassembly

#11

Post by Mister_Wilson »

Workmates are great fount holders. I've drilled additional holes to position the pegs exactly where I want them.
John
H.C. Lanterns dealer
Coleman 275 Appreciation Syndicate #2001 A Turd's Odyssey
Canadian Blues #028
Coleman Slant Saver #31
Looking for 6-56 and 6-58 Birthday lanterns.
There's been an alarming increase in the number of things I know nothing about.
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#12

Post by Madcap »

That's excellent - I'm going to start looking for one...how long have you had that one?
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

228E Test Fire...

#13

Post by Madcap »

I installed a replacement tip cleaner body from Mike, and OCP.....thought all was good when I discovered the spring was missing from the orig the generator. OK, I had a complete. new, spare generator. A couple new mantles were put on it taken outside last night for a test light. She pumped fine, opened the valve, heard some air and waited sec, and tried lighting - nothing. Tried again and same.The generator was taken out and proved to be for a 200 single mantle. The light went on in my head - it was the wrong generator.
A replacement 228 generator should be here next week. :P
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
TwoCanoes
Serious Colemanaholic
Posts: 620
Joined: Mon Feb 25, 2019 10:27 pm

Re: 228E 3 52 Disassembly

#14

Post by TwoCanoes »

Madcap wrote: Sat Apr 03, 2021 5:49 pm That's excellent - I'm going to start looking for one...how long have you had that one?
I've had my benchtop Workmate for decades. I got a new Workmate 225 for Christmas this year. I use them both a lot.
Stewart
User avatar
Murff
Administrator
Posts: 1200
Joined: Thu Dec 11, 2008 2:45 am
Title: Guy Who Knows Just Enough To Cause Trouble

Re: 228E 3 52 Disassembly

#15

Post by Murff »

Where Stewart has his pipe wrench will work, but I use a deep socket on the valve stem packing nut with a long extension as a handle for leverage.

Murff
Name: Murff   ICCC Member #726
Coleman Blue's 243's #002   Ebay Handle: Happy-campers2
EX-ICCC Newsletter Editor & Full time Coleman Addiction Enabler
Part-time Idito and Hater of Turd 275s
TwoCanoes
Serious Colemanaholic
Posts: 620
Joined: Mon Feb 25, 2019 10:27 pm

Re: 228E 3 52 Disassembly

#16

Post by TwoCanoes »

Murff wrote: Sun Apr 04, 2021 5:19 pm Where Stewart has his pipe wrench will work, but I use a deep socket on the valve stem packing nut with a long extension as a handle for leverage.

Murff
Just to be clear, that's not a pipe wrench in my photos, it's a monkey wrench. The difference is significant in this context. A monkey wrench is like your standard adjustable end wrench (Crescent wrench), but with the jaws at a 90 degree angle to the handle. A pipe wrench, with it's loose, sharply-ridged, generally wider jaws would very likely damage or mar the assembly.
Stewart
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#17

Post by Madcap »

Regarding the pipe and monkey wrenches - in the back of my head recognized a difference between the two but it didn't register.
As a note - I put the old spring, cardboard was packing and tip cleaner was inserted into the original generator but it still never picked up any fuel. If the fuel pickup tube might be plugged up maybe that's the cause also. It was cleaned while it was out though but then again maybe the fount still had some dirt....probably won't know much more till the replacement generator gets here.

I have a 252 mil spec with a problem also so I'll switch over to that for now.

You guys are really helpful - thanks so much and hope everyone enjoyed a good Easter.
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
zoomkat
Super Colemanaholic
Posts: 1710
Joined: Mon Sep 28, 2015 11:17 pm

Re: 228E 3 52 Disassembly

#18

Post by zoomkat »

"As a note - I put the old spring, cardboard was packing and tip cleaner was inserted into the original generator but it still never picked up any fuel."

You can take the generator off and see if fuel will flow from the valve assembly to check for lower blockage or issues. Do note that the older original generators for this type of lantern have a small screen inside the generator that can damage the pricker wire if you do not take precautions to protect the pricker upon reassembly. The pricker may have been bent in the past and it may not be cleaning the orifice.
User avatar
Murff
Administrator
Posts: 1200
Joined: Thu Dec 11, 2008 2:45 am
Title: Guy Who Knows Just Enough To Cause Trouble

Re: 228E 3 52 Disassembly

#19

Post by Murff »

TwoCanoes wrote: Sun Apr 04, 2021 6:50 pm
Murff wrote: Sun Apr 04, 2021 5:19 pm Where Stewart has his pipe wrench will work, but I use a deep socket on the valve stem packing nut with a long extension as a handle for leverage.

Murff
Just to be clear, that's not a pipe wrench in my photos, it's a monkey wrench. The difference is significant in this context. A monkey wrench is like your standard adjustable end wrench (Crescent wrench), but with the jaws at a 90 degree angle to the handle. A pipe wrench, with it's loose, sharply-ridged, generally wider jaws would very likely damage or mar the assembly.
My error in calling it a pipe wrench. I also know the diiference.

I know some like photos with explanations, so...

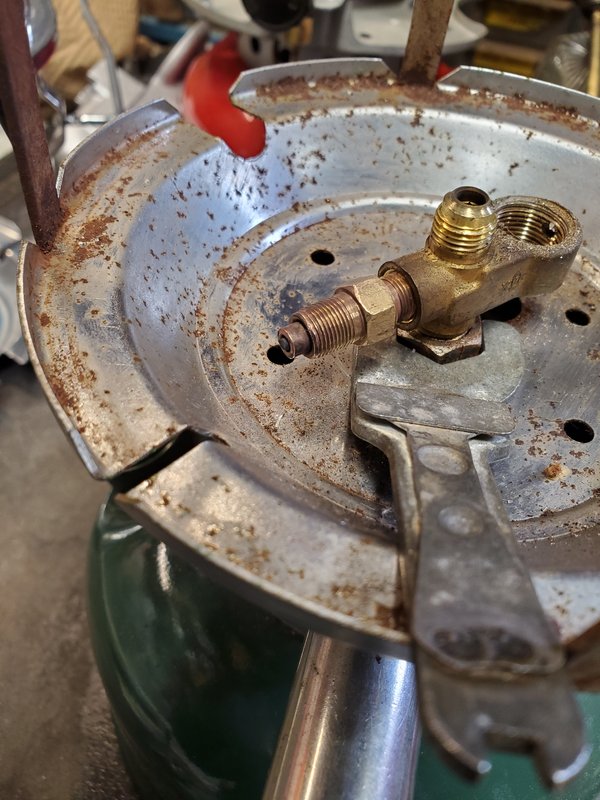

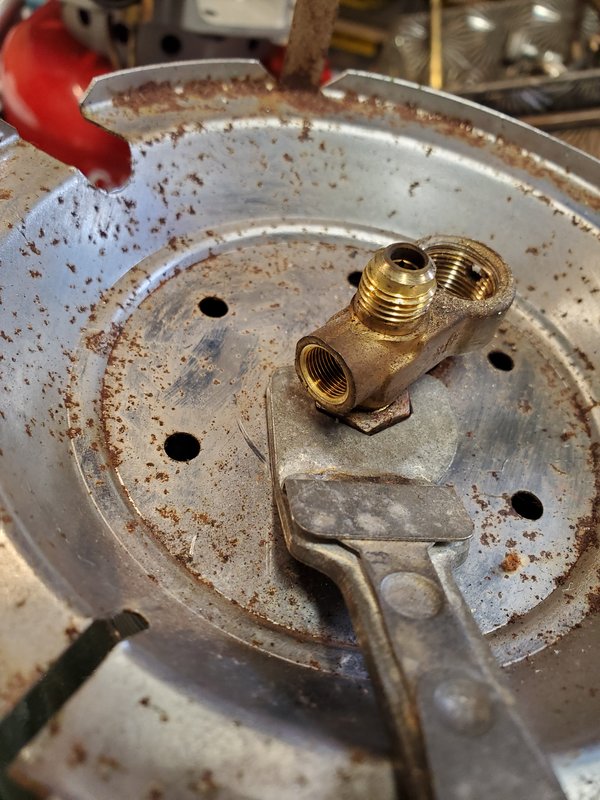

First, here is where this wrench is handy:


To protect the tip cleaner threads when removing it from a 220 lantern:

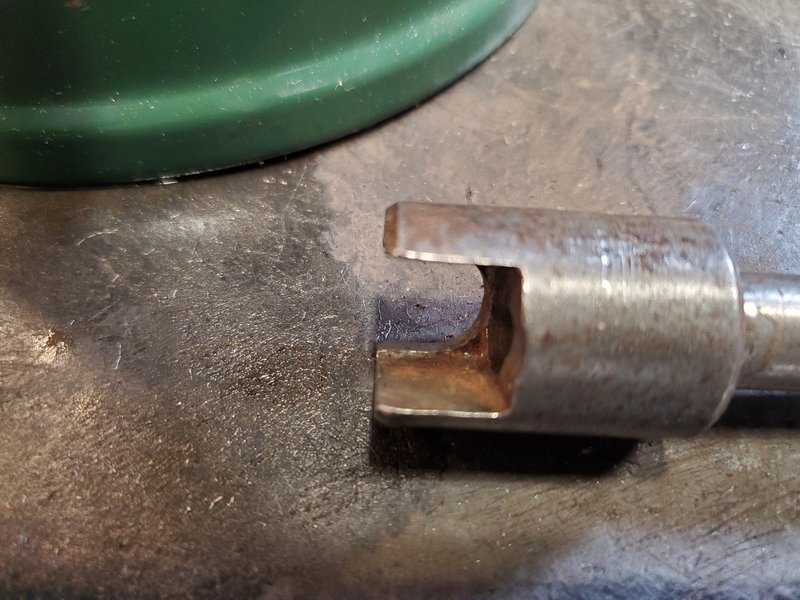

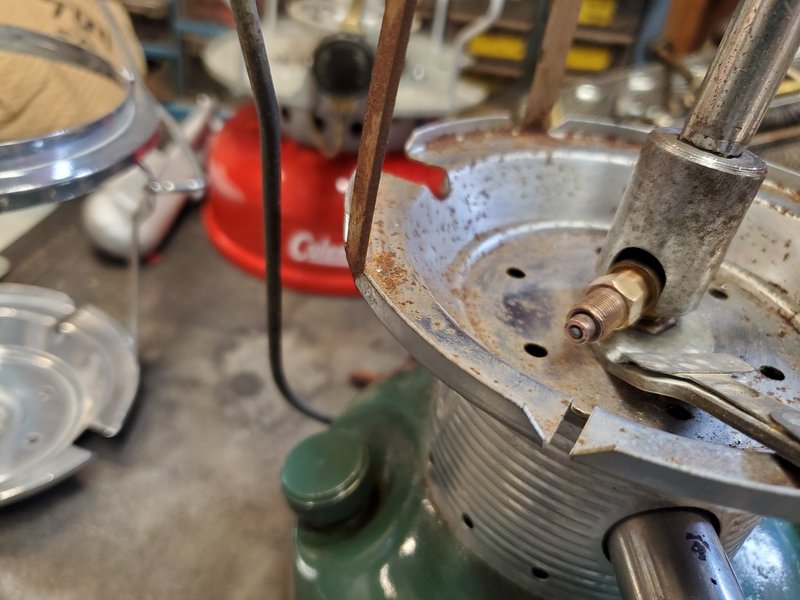

I use an old tip cleaner assembly minus the turning wire part:


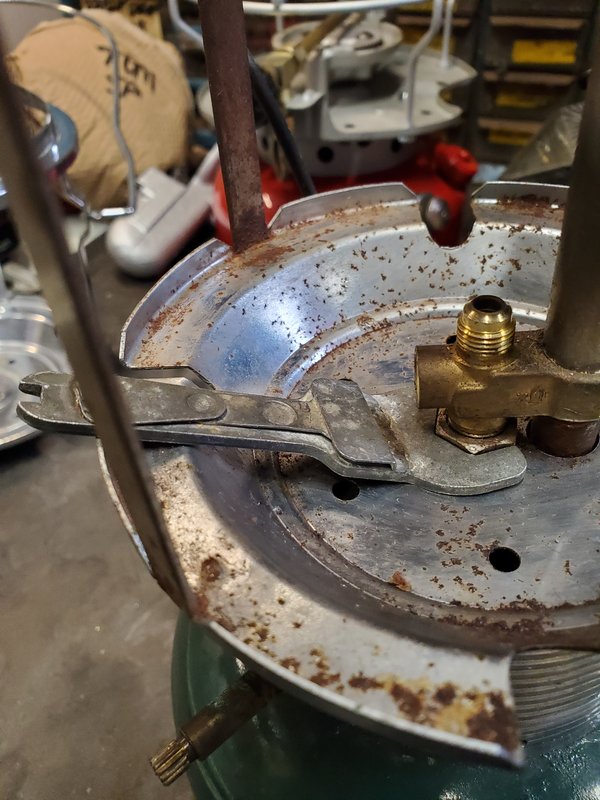

This is my "handle" for leverage when trying to loosen the burner assembly:

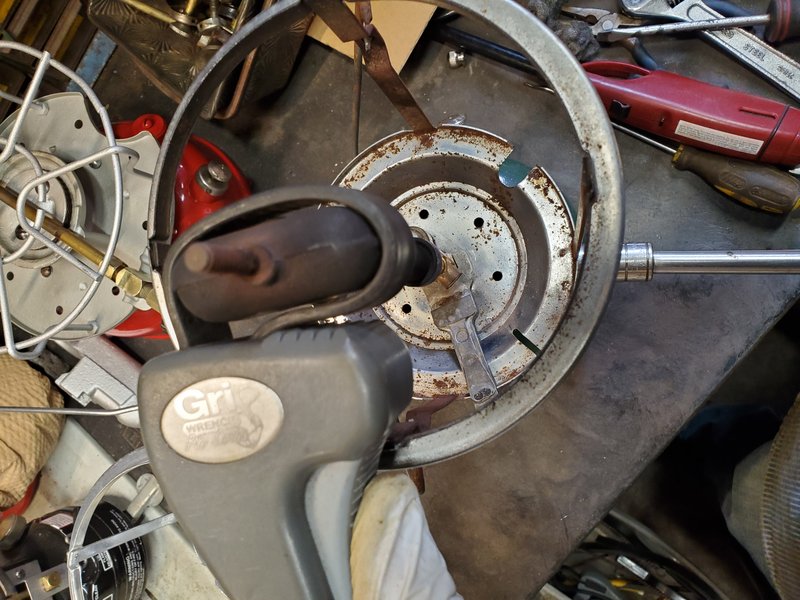

A strap wrench for the removal:


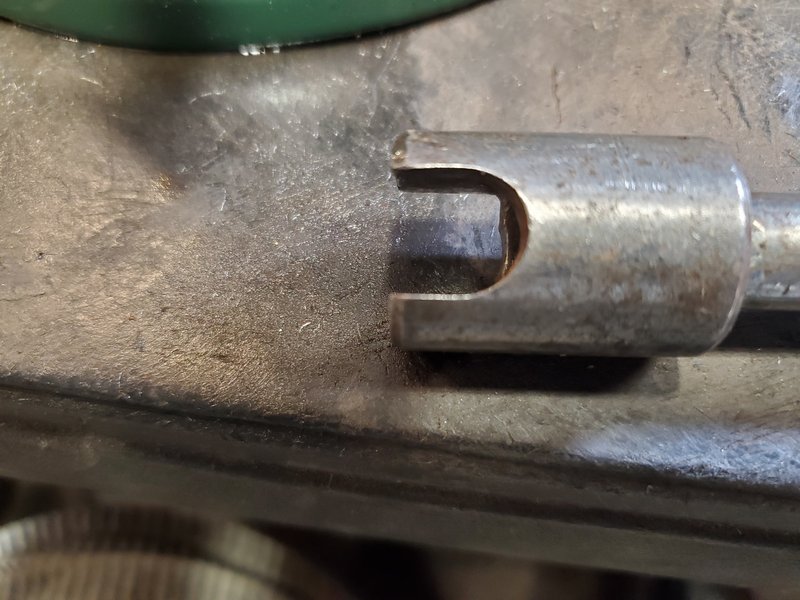

Some of the more members that are "engineers" have made this tool out of an old socket:



Sadly, I purchased mine from eBay.

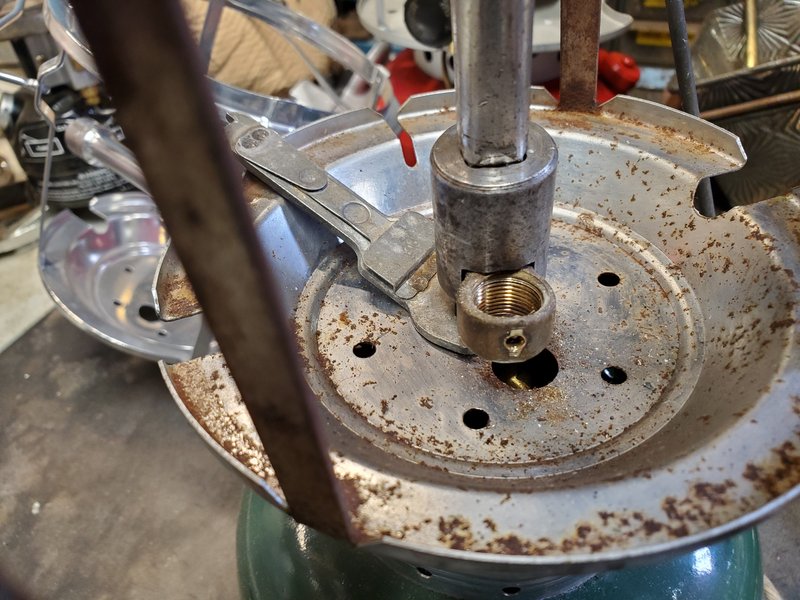

It fits thusly:

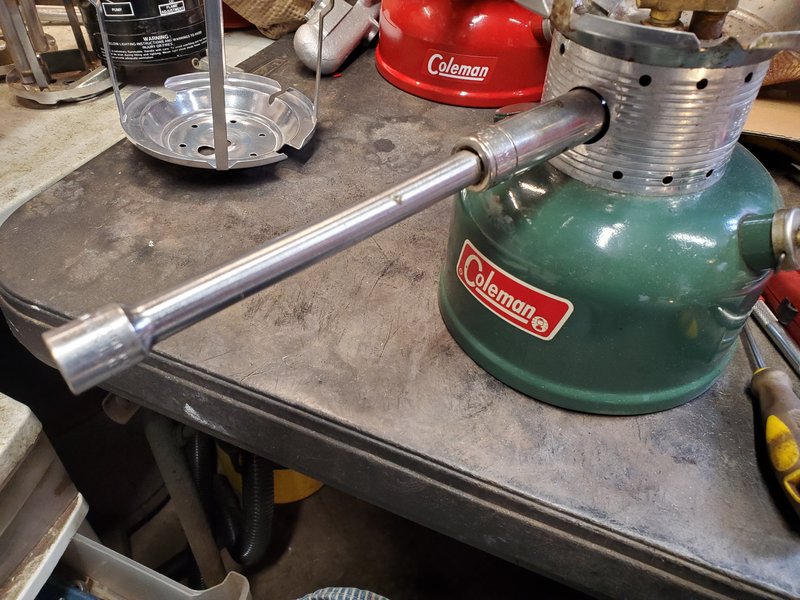

Using this with a ratchet and extension and also using the deep socket on another extension on the valve packing nut gives you the leverage to get the tip cleaner assembly loose.

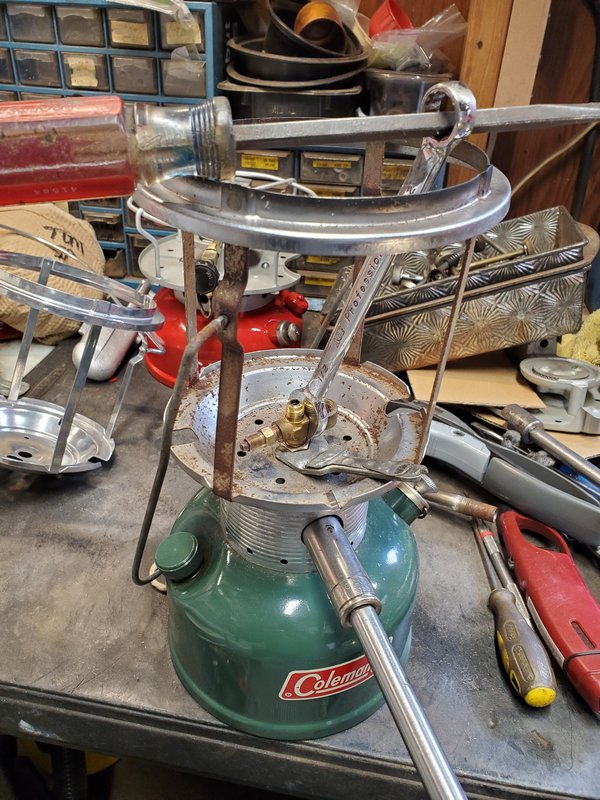

Some of us old timers learned from Frank to use as box/open end wrench with a screwdriver to loosen it:


It was best to have the work area cleared when doing this as once it broke loose, things tended to scatter.

Hope this helps a little.

Murff
Name: Murff   ICCC Member #726
Coleman Blue's 243's #002   Ebay Handle: Happy-campers2
EX-ICCC Newsletter Editor & Full time Coleman Addiction Enabler
Part-time Idito and Hater of Turd 275s
User avatar
outlawmws
Super Colemanaholic
Posts: 3425
Joined: Sat Sep 24, 2016 5:51 am

Re: 228E 3 52 Disassembly

#20

Post by outlawmws »

Workmates are great. Very versatile, and can generally be had fairly cheap on Clist and other marketplace sites locally. I'm looking to pick up another first gen - all aluminum WM later today (fingers crossed)

Then I'll be selling off one or two of the others. I always like having two identical, as in pairs, they are VERY Handy. One will get rebuilt (needs Jaws) specifically for welding and fabricating...

The bench top versions are handy for small work. I want to build one flush into a bench top someday as a holder for bench top tools like Bench grinders, arbor presses, My reloading plate, the Miter trimmer, chop saw, miter box, etc...

They even have an 8" hobby version even smaller that has a pivot ball mount, that for light hobby work is good, but pretty useless for fount work.

There is one I don't have, and that one mounts to the wall and folds down to be less in the way. If I found one cheap I'd get it even though at the moment I don't have any available wall space...
[Logo%20Outlaw-half]
Coleman Blue's 243's #341 - 275 Appreciation Syndicate member 0242
FAS #001 Confusing Future Generations of Collectors, One Lantern at a Time!

“A Human Being should be able to change a diaper, plan an invasion, butcher a hog, conn a ship, design a building, write a sonnet, balance accounts, build a wall, set a bone, comfort the dying, give orders, take orders, cooperate, act alone, solve equations, analyze a new problem, pitch manure, program a computer, cook  a tasty meal, fight efficiently, die gallantly.  Specialization is for insects.”            - Lazarus Long


brokenmantle
Super Colemanaholic
Posts: 1772
Joined: Thu Feb 16, 2017 2:59 am

Re: 228E 3 52 Disassembly

#21

Post by brokenmantle »

i usually go in at an angle with the wrench, leaving the tip cleaner in place. the frame will move with it also so be ready for that.
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#22

Post by Madcap »

zoomkat wrote: Sun Apr 04, 2021 7:51 pm "As a note - I put the old spring, cardboard was packing and tip cleaner was inserted into the original generator but it still never picked up any fuel."

You can take the generator off and see if fuel will flow from the valve assembly to check for lower blockage or issues. Do note that the older original generators for this type of lantern have a small screen inside the generator that can damage the pricker wire if you do not take precautions to protect the pricker upon reassembly. The pricker may have been bent in the past and it may not be cleaning the orifice.
The gen was removed and fuel flow was OK. The gen did have a screen that I removed, cleaned and reinserted with the small hole centered at the bottom of the tip. The tip cleaner, spring and tube were inserted into the generator and it was attached to the burner and connected to the seat...still nothing. I should have a another generator from OCP coming that hopefully will cure the problem.
Thanks
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Still No Fuel To Burner

#23

Post by Madcap »

A new 228 generator arrived and installed but apparently no fuel is making up the generator yet. Or at least from the generator and into the burner. I was beginning become confident on how diagnose and fix some of the problems but this one has me stumped. If fuel is present at the base when the valve is opened and the burner is clean and clear why isn't getting to the burner? If fuel level were too low then it wouldn't show up at the gen seat right?
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
User avatar
Ridge Runner
Super Colemanaholic
Posts: 1719
Joined: Wed Aug 29, 2018 11:39 pm

Re: Still No Fuel To Burner

#24

Post by Ridge Runner »

Madcap wrote: Fri Apr 09, 2021 8:21 pm A new 228 generator arrived and installed but apparently no fuel is making up the generator yet. Or at least from the generator and into the burner. I was beginning become confident on how diagnose and fix some of the problems but this one has me stumped. If fuel is present at the base when the valve is opened and the burner is clean and clear why isn't getting to the burner? If fuel level were too low then it wouldn't show up at the gen seat right?
How long are you waiting? It could take 30 seconds or so especially if the fount is low on fuel. Make sure it’s at least 2/3 full.

Just wondering, do you have the tip cleaner lever (handle) in the down position?

If you spin the tip cleaner lever around (and around) do you eventually get fuel at all? Some times a new genny needs a good several spins to keep the tip clear.
— L.J.

Looking for 10/2015 & 1/2020 B-Day Lanterns
I love the smell of naphtha in the morning!
"Ain’t no need to watch where I’m goin’; just need to know where I’ve been" -Tow Mater
User avatar
Mister_Wilson
Super Colemanaholic
Posts: 1817
Joined: Thu Jan 21, 2016 2:10 am

Re: 228E 3 52 Disassembly

#25

Post by Mister_Wilson »

Being lazy and not going to the top...the pricker rod is hooked into the hole at the top of the eccentric block? If not, the pricker wire will remain in the orifice blocking the fuel flow.
John
H.C. Lanterns dealer
Coleman 275 Appreciation Syndicate #2001 A Turd's Odyssey
Canadian Blues #028
Coleman Slant Saver #31
Looking for 6-56 and 6-58 Birthday lanterns.
There's been an alarming increase in the number of things I know nothing about.
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#26

Post by Madcap »

I'll try adding more fuel and see what happens but if fuel is present at the seat, why it wouldn't it reach the burner? I'm pretty sure at least 30 sec went by also.
I checked the tip cleaner was engaged to the eccentric each time I took it off and started over but nothing changed.
As I said I'll add some more fuel and check back in back later.
Thank guys
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
User avatar
Ridge Runner
Super Colemanaholic
Posts: 1719
Joined: Wed Aug 29, 2018 11:39 pm

Re: 228E 3 52 Disassembly

#27

Post by Ridge Runner »

Are you at least hearing the hissing sound of air escaping from the gas tip?

If so, try opening the fuel valve all the way. Any change?
— L.J.

Looking for 10/2015 & 1/2020 B-Day Lanterns
I love the smell of naphtha in the morning!
"Ain’t no need to watch where I’m goin’; just need to know where I’ve been" -Tow Mater
zoomkat
Super Colemanaholic
Posts: 1710
Joined: Mon Sep 28, 2015 11:17 pm

Re: 228E 3 52 Disassembly

#28

Post by zoomkat »

"I'll try adding more fuel and see what happens but if fuel is present at the seat, why it wouldn't it reach the burner? I'm pretty sure at least 30 sec went by also."

In the 1/4 turn open to start lanterns, the fuel tank is normally assumed to be *full* providing a high static fuel level in the fuel pickup tube, which is blown up into the generator during the start sequence. With a low tank level, the static level in the fuel pickup tube is low, and may not provide sufficient fuel for a start. As the fuel control rod is in the fuel pickup orifice during the start, very little fuel from the tank will be supplied. The below picture shows how the tank level and the static fuel pickup tube level are going to be related.
You do not have the required permissions to view the files attached to this post.
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#29

Post by Madcap »

Ridge Runner - The burners always hissed - in fact it would blow my matches out when trying to lighting it.

zoomcat - That's a great illustration - I think it makes sense

However, I did add more fuel but still nothing but air then finally got it lit by swishing the fuel in the tank. Almost immediately I could hear spitting fuel and it fired right up and it ran well for about ten minutes before shutting off. About 30 minutes I tried it again and nothing till the fuel was swished around. It lit normally then and I ran it about 10-15 min more before shutting it down. I thought maybe the generator might need priming from the fuel pick up or something but the second time it still needed it too.

It's a pretty good looking lantern in nice condition and was satisfying to see it finally light after all this. I'm looking forward to trying it again tomorrow and see if it lights normally.
You do not have the required permissions to view the files attached to this post.
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
zoomkat
Super Colemanaholic
Posts: 1710
Joined: Mon Sep 28, 2015 11:17 pm

Re: 228E 3 52 Disassembly

#30

Post by zoomkat »

"However, I did add more fuel but still nothing but air then finally got it lit by swishing the fuel in the tank."

There is a possibility that the fuel control rod in the fuel pickup assembly is sticking and not lifting up when the fuel control valve is fully open. If you pressurize the tank, fully open the fuel control valve, then you should get raw fuel flowing fairly quickly. If only air flows and the tank depressurizes quickly, then the rod is most likely sticking. The below picture shows how the valve and fuel rod work together. If a stuck rod is suspected, I'd first try letting the pressure out of the tank. opening the fuel valve fully, then tap/bang a little on the tank with a piece of wood or small rubber hammer and see if the rod might pop loose.
You do not have the required permissions to view the files attached to this post.
User avatar
outlawmws
Super Colemanaholic
Posts: 3425
Joined: Sat Sep 24, 2016 5:51 am

Re: 228E 3 52 Disassembly

#31

Post by outlawmws »

Sticking or the spring is on he wrong side and keeping the rod in the "start" position...
[Logo%20Outlaw-half]
Coleman Blue's 243's #341 - 275 Appreciation Syndicate member 0242
FAS #001 Confusing Future Generations of Collectors, One Lantern at a Time!

“A Human Being should be able to change a diaper, plan an invasion, butcher a hog, conn a ship, design a building, write a sonnet, balance accounts, build a wall, set a bone, comfort the dying, give orders, take orders, cooperate, act alone, solve equations, analyze a new problem, pitch manure, program a computer, cook  a tasty meal, fight efficiently, die gallantly.  Specialization is for insects.”            - Lazarus Long


Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#32

Post by Madcap »

Very clear illustrations - thanks. A stuck fuel control rod sounds like a very likely solution. I'll try what you suggest and get back later.
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#33

Post by Madcap »

Failure to light after tapping the bottom of the fount seems to point to a restricted fuel pick up. That's the most logical at this stage I guess. I need to disassemble everything and take a look at the fuel pick up tube including the spring and lean the assembly in citrus acid.
I'll get back -
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
zoomkat
Super Colemanaholic
Posts: 1710
Joined: Mon Sep 28, 2015 11:17 pm

Re: 228E 3 52 Disassembly

#34

Post by zoomkat »

There is a possibility of making a "rake" type gizmo to get the fuel control rod to pop lose. I cut some thin metal strips from a tin cane to make a rake device to run under the fuel pickup assembly to possibly push up on the protruding tip of the fuel control rod. The strips were discarded prior to me trying them thru the fuel port and under the fuel pickup assembly. I didn't have a stuck rod at the time, so it was a low priority project.
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#35

Post by Madcap »

zoomkat wrote: Sat Apr 10, 2021 7:49 pm There is a possibility of making a "rake" type gizmo to get the fuel control rod to pop lose. I cut some thin metal strips from a tin cane to make a rake device to run under the fuel pickup assembly to possibly push up on the protruding tip of the fuel control rod. The strips were discarded prior to me trying them thru the fuel port and under the fuel pickup assembly. I didn't have a stuck rod at the time, so it was a low priority project.
Was the fuel pick up in the fount or removed....sorry, not clear on what you're describing.
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
zoomkat
Super Colemanaholic
Posts: 1710
Joined: Mon Sep 28, 2015 11:17 pm

Re: 228E 3 52 Disassembly

#36

Post by zoomkat »

"Was the fuel pick up in the fount or removed"

In the fount. I was looking for ways to unstick the fuel control rod without removing the valve assembly from the tank.
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#37

Post by Madcap »

OK, I'll give that a try, Thanks
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
zoomkat
Super Colemanaholic
Posts: 1710
Joined: Mon Sep 28, 2015 11:17 pm

Re: 228E 3 52 Disassembly

#38

Post by zoomkat »

"OK, I'll give that a try, Thanks"

You might consider making a little LED light on a small wire that can be put thru the fuel port to light the tank inside. Might make things a little easier than shining a flashlight thru the port while everything else is going on.
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#39

Post by Madcap »

I have a flexible bore light that might work. On another note I poured the fuel out through a coffee filter and noticed more rust than I anticipated was in there since I thought I'd cleaned it out. It's full of Evaporust now to hopefully get rid of the remaining rust. Then it'll be flushed out with water followed up with some alcohol and maybe a rinse of kerosene. That rust probably restricted the fuel pick up.
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
zoomkat
Super Colemanaholic
Posts: 1710
Joined: Mon Sep 28, 2015 11:17 pm

Re: 228E 3 52 Disassembly

#40

Post by zoomkat »

"That rust probably restricted the fuel pick up."

It is possible if there is a significant amount of loose rust on the bottom of the tank. If the fuel control rod is operating correctly, it should be clearing the fuel pickup orifice of blockage when it is pushed down as the fuel control valve is closed. If rust blockage is suspected, you could hold the lantern at a 45 deg. angle, swish the fuel around so the loose rust settles in the bottom corner of the tank, then slowly right the lantern and then try a startup. Most of the lose rust should stay at the outer rim of the tank bottom.
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

Re: 228E 3 52 Disassembly

#41

Post by Madcap »

The fount was drained of fuel and filled with some used Evaporust overnight. This morning it was poured out through a coffee filter to see how much crud was in there and it was enough to cause problems. Following that I rinsed it several times with water and more crud came out. Right now it's full of white vinegar in an effort to dissolve what remaining rust is in there and get rid of it once and for all.
I wanted to the soak the pick up and control rod in citrus acid or vinegar to completely clean the assembly but it was so tight it wouldn't budge inverted in a vice. So at this point I'll try some penetrant and maybe some heat to get it out or just reassemble and see if it'll light after the tank is clean.
I'll pour out the vinegar in awhile and try removing the fuel pick up.
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
zoomkat
Super Colemanaholic
Posts: 1710
Joined: Mon Sep 28, 2015 11:17 pm

Re: 228E 3 52 Disassembly

#42

Post by zoomkat »

" So at this point I'll try some penetrant and maybe some heat to get it out or just reassemble and see if it'll light after the tank is clean."

While you have solvents in the fuel tank, leave the fuel control valve full open so the fuel control rod spring is helping push the rod up to unstick it.
Madcap
Member
Posts: 98
Joined: Wed Feb 24, 2021 5:06 am

SUCESS!!

#43

Post by Madcap »

After a thoroughly cleaning and rinsing the fount, everything was reassembled and fuel added. Light up was text book and she burned bright and steady....no leaks, and shut down was perfect. Rust and dirt apparently was the problem so lesson learned.
BTW just as a note this 228E date is "4 63" - I got it mixed up with a 220E dated "4 52" that needs disassembly and cleaning next.
I thank you all for the help with this 228 but if I start the 220E I may need to call you guys again. If so, I'll start another thread- till then..... ;)

Dick
Dick
Mill Spec-Ops #0345
International POSSUM Brotherhood Chapter 11
"Quando Omni Flunkus Moritati"
User avatar
outlawmws
Super Colemanaholic
Posts: 3425
Joined: Sat Sep 24, 2016 5:51 am

Re: 228E 3 52 Disassembly

#44

Post by outlawmws »

:cf_bravo:
[Logo%20Outlaw-half]
Coleman Blue's 243's #341 - 275 Appreciation Syndicate member 0242
FAS #001 Confusing Future Generations of Collectors, One Lantern at a Time!

“A Human Being should be able to change a diaper, plan an invasion, butcher a hog, conn a ship, design a building, write a sonnet, balance accounts, build a wall, set a bone, comfort the dying, give orders, take orders, cooperate, act alone, solve equations, analyze a new problem, pitch manure, program a computer, cook  a tasty meal, fight efficiently, die gallantly.  Specialization is for insects.”            - Lazarus Long


Post Reply
