214-700 214 A700 kerosene

Post your tech questions here, lots of knowledge available.
Post Reply
tractor4
Member
Posts: 11
Joined: Mon Feb 15, 2021 1:51 pm

214-700 214 A700 kerosene

#1

Post by tractor4 »

i just picked up a 10 -85 214-700 kerosene What is the difference from 214 A 700 kerosene Or is it just the year manufactured.Thankyou.
tractor4
Member
Posts: 11
Joined: Mon Feb 15, 2021 1:51 pm

Re: 214-700 214 A700 kerosene

#2

Post by tractor4 »

I just picked up a10-85 214-700 kerosene What is the difference from a 214 a 700 kerosene or is it just the manufactured year Thankyou.
User avatar
Tgarner01
Super Colemanaholic
Posts: 5960
Joined: Sun Nov 03, 2019 10:47 pm

Re: 214-700 214 A700 kerosene

#3

Post by Tgarner01 »

Does it have a cage around the globe?
Toby Garner, from SW Missouri
ICCC #1939
tractor4
Member
Posts: 11
Joined: Mon Feb 15, 2021 1:51 pm

Re: 214-700 214 A700 kerosene

#4

Post by tractor4 »

not on the glass just the standard bail handle holds and two common uprights.
User avatar
Tgarner01
Super Colemanaholic
Posts: 5960
Joined: Sun Nov 03, 2019 10:47 pm

Re: 214-700 214 A700 kerosene

#5

Post by Tgarner01 »

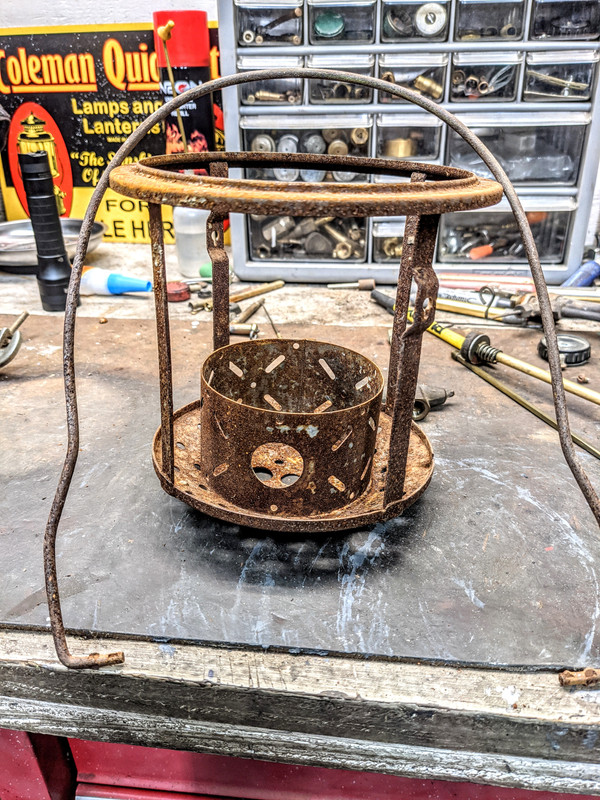

Does your lantern have uprights similar to this?

Toby Garner, from SW Missouri
ICCC #1939
tractor4
Member
Posts: 11
Joined: Mon Feb 15, 2021 1:51 pm

Re: 214-700 214 A700 kerosene

#6

Post by tractor4 »

Not at all the model is new 1985 Thanks
User avatar
Rubing
Super Colemanaholic
Posts: 3025
Joined: Sun Aug 03, 2014 5:16 pm

Re: 214-700 214 A700 kerosene

#7

Post by Rubing »

Some have a plastic pump cap and some have a metal pump cap. Mine is not available right now
ICCC # 1402
tractor4
Member
Posts: 11
Joined: Mon Feb 15, 2021 1:51 pm

Re: 214-700 214 A700 kerosene

#8

Post by tractor4 »

Sounds good to me. mine is metal so I will take that as the answer I was looking for. Thankyou.
User avatar
Rubing
Super Colemanaholic
Posts: 3025
Joined: Sun Aug 03, 2014 5:16 pm

Re: 214-700 214 A700 kerosene

#9

Post by Rubing »

I forgot as well, one model has a heat shield and the other doesn’t
ICCC # 1402
Guff
Super Colemanaholic
Posts: 1147
Joined: Sun Mar 06, 2011 5:07 am

Re: 214-700 214 A700 kerosene

#10

Post by Guff »

Coleman Wichita made three 214 models from about 1984 to about 2009. The 214, 214A-700, and 214B-700.
The first 214 had the bail attached to a frame type similar to what Toby has shown above. It also had a metal pump cap, but no heat shield.
The early 214A-700 first had the bail attached to the vent, still a metal pump cap and I think a steel burner tube and cap, but no heat shield.
Later models of the 214A-700 had the plastic pump cap, and heat shield.
The 214B-700, had the plastic pump cup, heat shield, and brass burner tube. Later ones had steel burner tube and cap.

That's my take on it, but I don't know the exact dates these changes came about.

Keith
tractor4
Member
Posts: 11
Joined: Mon Feb 15, 2021 1:51 pm

Re: 214-700 214 A700 kerosene

#11

Post by tractor4 »

Thanks for the extra info keith. For 25 bucks and fired only 1 time with the box I cant wait to fire it up again.
Andrew
Senior Member
Posts: 239
Joined: Wed Feb 24, 2016 10:26 am

Re: 214-700 214 A700 kerosene

#12

Post by Andrew »

Hi . There were many changes with the 214 A 700. Steel and brass burner tube. Aluminum , steel and plastic pump caps. Heat shield and no heat shield. A change in the vent. Pictures are left to right 214 700 and the rest 214A700. One of them has the pre heat cup removed. There were also two different burner galleries on the 214A700.
These are also just my observations on what I have.
You do not have the required permissions to view the files attached to this post.
