502 on high

Post your tech questions here, lots of knowledge available.
Post Reply
User avatar
MattH
Member
Posts: 14
Joined: Sun Oct 14, 2018 10:51 pm

502 on high

#1

Post by MattH »

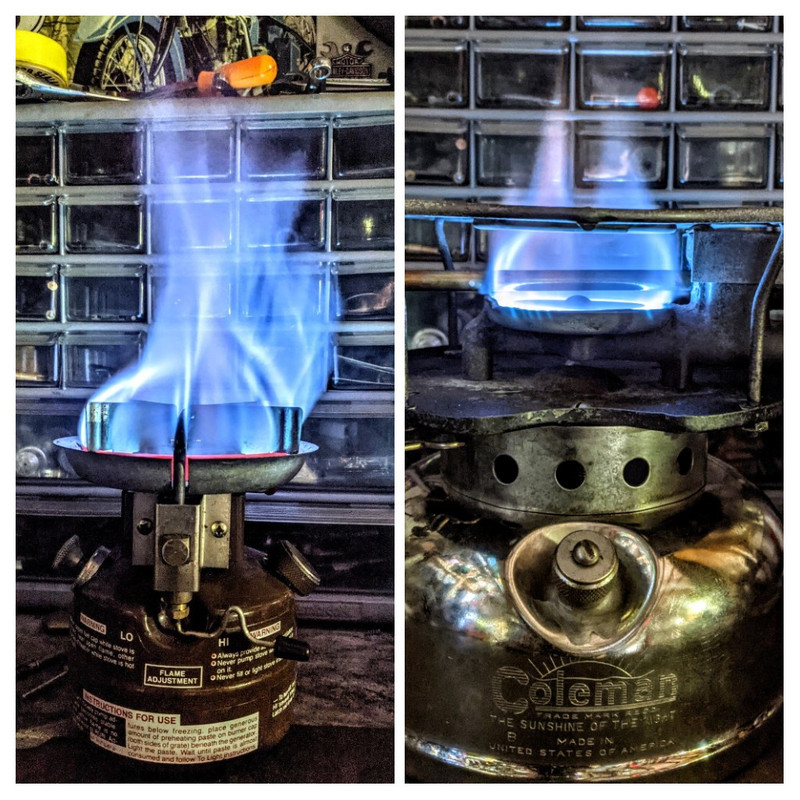

I’m new to 502 stove. Was testing my stove to make coffee with. The flame didn’t seem that ferocious like a suit case or a 530 on high. It took 15-17 to boil the 9 cup coffee pot. This is high, does that seem right?
You do not have the required permissions to view the files attached to this post.
User avatar
JimL
Super Colemanaholic
Posts: 6918
Joined: Thu Mar 05, 2015 3:54 pm

Re: 502 on high

#2

Post by JimL »

As awesome as the 502 is, it's not a powerhouse at 4500 BTU, so your time is probably right, if not better than normal.

When perking coffee, I use a more powerful stove to heat the water and then switch to the 502 for perking since it's so adjustable, down to a low simmer if that's what you want.
-Jim

I threw a boomerang a couple years ago; I now live in constant fear.

Flammable liquids, open flame, what could go wrong?
User avatar
Stovie
Serious Colemanaholic
Posts: 589
Joined: Thu Dec 17, 2020 1:46 am

502

#3

Post by Stovie »

Interesting, what's the limiting factor or chokepoint governing this model, is it simply a matter of jetting or some other crucial intake or air tube orifice diameter? There are some pretty amazing handy & knowledgeable people here, wonder if it's possible, or if anyone has "hot rodded" this stove for a bit better BTU output.
Everybody wants to drive the train, nobody wants to shovel the coal.
stoves1234
Colemanaholic
Posts: 417
Joined: Sat Mar 08, 2014 4:54 pm

Re: 502 on high

#4

Post by stoves1234 »

I haven't heard of anyone souping up a 502. Other factors that affect any stove's performance are wind and whether or not a windscreen is used. As Jim says, the 502 isn't the hottest of Coleman stoves. Take a page out of his book and get a 530 or M1950 to boil water. Or, better yet, a 500.
Jim
User avatar
Stovie
Serious Colemanaholic
Posts: 589
Joined: Thu Dec 17, 2020 1:46 am

502 on high

#5

Post by Stovie »

No, I mean without regard to wind and things like that. There's obviously a design reason why reason it won't spool up to as high a BTU output. I wonder what it is?
Everybody wants to drive the train, nobody wants to shovel the coal.
Majicwrench
Super Colemanaholic
Posts: 3317
Joined: Mon Jul 30, 2012 9:33 pm

Re: 502 on high

#6

Post by Majicwrench »

Pump that thing up. It'll go stronger than that.

But like was said, tis not a pwerhouse like a 508.

Sure, it wasn't designed to do 8000btus. Would need more air and more fuel.
Keith
User avatar
JimL
Super Colemanaholic
Posts: 6918
Joined: Thu Mar 05, 2015 3:54 pm

Re: 502 on high

#7

Post by JimL »

The burner on a 502 is the same size as the burner on a 500. However, the 502 runs extremely hot as it is, so much so, it will self pressurize. This is not a stove I would think if trying to get more performance out of it.

And yes, the the tip orifice is larger on the 500 as it's delivering quite a bit more fuel.

I documented the temps of a 502 a couple of years ago. If interested, I can dig up that info after the gathering this week.
-Jim

I threw a boomerang a couple years ago; I now live in constant fear.

Flammable liquids, open flame, what could go wrong?
zoomkat
Super Colemanaholic
Posts: 1863
Joined: Mon Sep 28, 2015 11:17 pm

Re: 502 on high

#8

Post by zoomkat »

Perhaps somebody with a good running 502 can fire it up and take some pictures, which at times can be worth a thousand words.
User avatar
Tgarner01
Super Colemanaholic
Posts: 6408
Joined: Sun Nov 03, 2019 10:47 pm

Re: 502 on high

#9

Post by Tgarner01 »

Toby Garner, from SW Missouri
ICCC #1939
User avatar
Deanofid
Moderator
Posts: 3201
Joined: Thu Dec 12, 2013 7:55 pm

Re: 502 on high

#10

Post by Deanofid »

Toby's pics show the 502 getting quite hot, although maybe there is just not a lot of heat to go around. I.E., a 500 has a larger generator and a different air intake. However, those 502s in Toby's pic show all of them heating the steel grates to red hot. That's around 1600 degrees. There's just not a lot of flame (burner size or gen orifice size) to back it up.

I have no problem boiling water for tea or coffee on my 502. Yes, a 500 does the job faster, but it weighs quite a bit more, too.

Wind or breeze makes a big difference, too. A little breeze on a 502 keeps it from getting hot on the pot.
Dean -Midnight Kerosene Ritualist--Deans Machine:  Deansmachine.com
ICCC #1220.   275 commiseration #0018.
"In Him was life, and His life was the Light of men."  John 1:4
User avatar
Tgarner01
Super Colemanaholic
Posts: 6408
Joined: Sun Nov 03, 2019 10:47 pm

Re: 502 on high

#11

Post by Tgarner01 »

In my opinion I think you should get you an early 400 stove... Smaller and lighter than the 502 and packs much more BTUs than a well fettled 500 in my opinion (only advertised as 1000+)


They simmer with the best of them as well.

Toby Garner, from SW Missouri
ICCC #1939
User avatar
Daryl22
Member
Posts: 57
Joined: Thu Apr 22, 2021 3:45 am

Re: 502 on high

#12

Post by Daryl22 »

I have used several 502's and have 2 at the moment. Have found some burn hotter that others. Should see red hot grill like Toby. Can 'hot rod' them by adding an extra burner ring. Also if you have a slow stove might check that spring in the fuel pick up tube. Take care getting the burner ring off, you can very easily make a mess of them. Large 'C' vise grips seem to do the less damage. Daryl sunny Socal
Daryl sunny SoCal
KampKook #5
TwoCanoes
Serious Colemanaholic
Posts: 701
Joined: Mon Feb 25, 2019 10:27 pm

Re: 502 on high

#13

Post by TwoCanoes »

Here is a boil test of several stoves, including several 502s. Boiled 26 oz of water in a stainless steel, covered pot. One of these days, I'll do a systematic fettle on the 1-70 502 to figure out what is causing its poor performance. But, like Toby says, if you want a fast boil and good simmer, it's hard to beat an early 400. By the way, I use the 425C (bottom row of the test) more than all the other tested stoves combined.
March 2021 test.jpg
You do not have the required permissions to view the files attached to this post.
Stewart
User avatar
JimL
Super Colemanaholic
Posts: 6918
Joined: Thu Mar 05, 2015 3:54 pm

Re: 502 on high

#14

Post by JimL »

>>Can 'hot rod' them by adding an extra burner ring.

I did that once and there was a trade off, but I can't recall what it was. I'm thinking it might have affected it's simmering ability. Whatever it was, it was severe enough that I removed the extra ring when it cooled back down.

I think Coleman has done an excellent job engineering their stoves and lanterns. Yeah, I know, the 501 was an exception, but dang it has a beautiful flame pattern!
-Jim

I threw a boomerang a couple years ago; I now live in constant fear.

Flammable liquids, open flame, what could go wrong?
User avatar
Emorr123
Colemanaholic
Posts: 300
Joined: Sat Nov 03, 2018 12:53 pm

Re: 502 on high

#15

Post by Emorr123 »

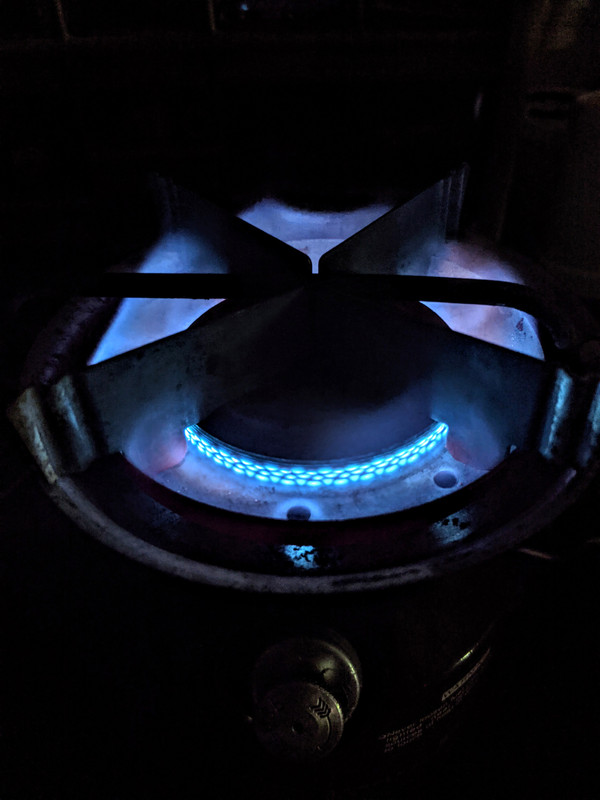

501 flame pattern
You do not have the required permissions to view the files attached to this post.
Eric
MilspecOps #1272
Coleman 275 Appreciation Syndicate #1272
BernzOmatic Appreciation Club #1272
Coleman Quick Lite Crew #7
ICCC #1789
