Here you go Lee. Tools and supplies; 1 in. dia. galvanized pipe w/caps ground sharp, 1/4 in. punch (for center hole); scissors; 3/4in. copper cap, drilled center; SS hex bolt 1 1/2in.; 2xSS washers; scrap leather.
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
Leather pump cups from scratch-Follow up W/pics

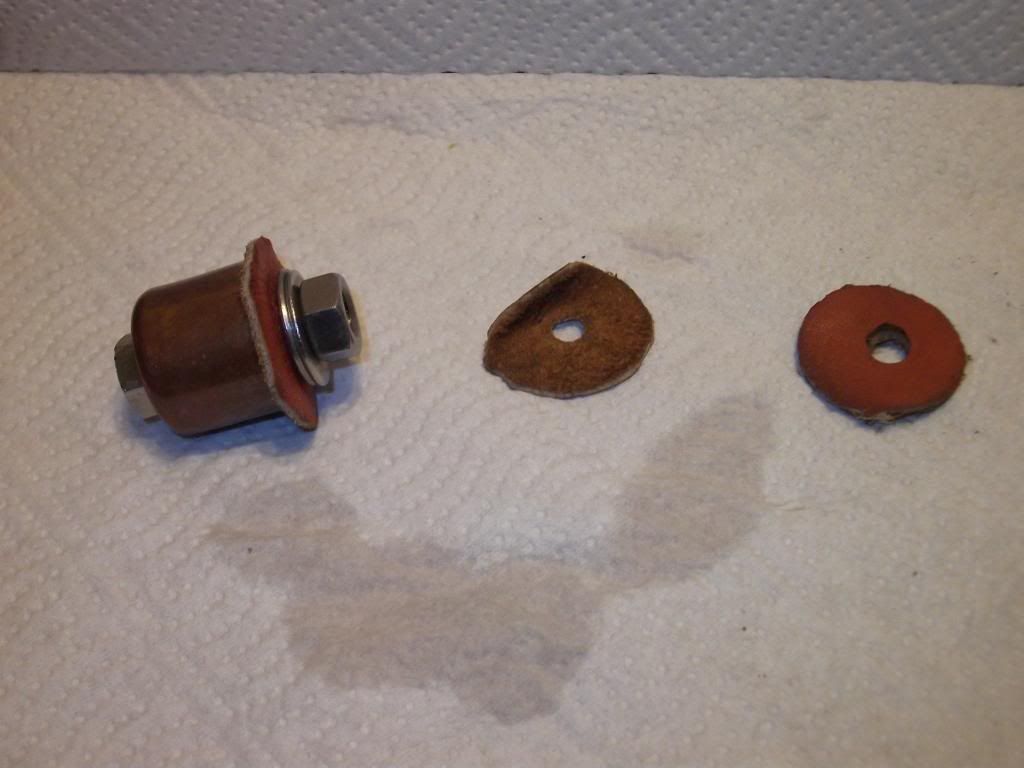

Here's a close up of the copper cup with wet leather ready to be tightened down. Leave for 24 hours.
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
Leather pump cups from scratch-Follow up W/pics
Good idea...I like!
Leather pump cups from scratch-Follow up W/pics
Yes, they work very well. A lot depends on the thickness of the leather. Some Coleman pump leathers were almost 1/16th thick so there is lot of wiggle room. And even if your leather blank isn't exactly circular in shape you can trim it at any stage to fit.
If you go to push the pump into the lantern and the leather starts to buckle around the edge you have leather too large for that lantern; just trim it a little until it stops buckling or try a thinner piece of leather.
Some old AGM's, Akron's, tend to be touchy with what they like. Experiment, right? I store them with very little oil.
If you go to push the pump into the lantern and the leather starts to buckle around the edge you have leather too large for that lantern; just trim it a little until it stops buckling or try a thinner piece of leather.
Some old AGM's, Akron's, tend to be touchy with what they like. Experiment, right? I store them with very little oil.
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
Leather pump cups from scratch-Follow up W/pics
Bob, thanks I'll leave it up to the mods of course but I can go step by step if it will be helpful.
STEPS:
1. Select leather. Use leather that is top grain with a rough side also. The rough side will be the side in contact with the pump tube.
2. Purchase or fabricate a 1 1/16th in. punch from 1in. dia. steel pipe 1ft. long. Cap the pipe so you can hit it with a hammer. Grind down the inner surface to a sharp edge with a cone shaped stone from a Dremel type tool. Punch out the leather. Don't worry if your punch does not go through the leather, it will leave a trace mark after hitting it with a hammer and you can cut that with scissors. NOTE: A 1 in. punch may be very close to the neoprene pump cups but I haven't narrowed that application down yet. I recall having to trim one of these down a bit to fit my red 286 a couple of months ago.
3. IF YOU HAVE A NON-STANDARD CUP NEED: Trace the diameter of a current pump cup from your GPA (assuming you have one) onto aluminum flashing (not shown) or similar including marking the center hole. Cut the template out with snips or heavy scissors. Punch or cut the center hole out of the template. Use this to trace on the leather and cut out. Cut as many as you have the need. I usually cut 6-7 and I'm done in one week and it will take me a couple months to use them up.
4. You can use the aluminum template to mark the center hole in all your cup leathers. Use a 1/4in. hole punch. If you are good at eye-balling it, go ahead. Again, leather is very forgiving.
5. COPPER CAP. Take a 3/4 in. dia. copper pipe cap and determine dead center. I'm not a plumber but the actual I.D. of the cup is 7/8ths. I suspect it is designed to accept 3/4" copper pipe so it is labeled as 3/4in.? Drill it out with a 1/16 bit then 1/16th increments until you have it out to 5/16ths.
6. The SS bolt is 1 1/2in. long and 1/4" dia. and 7/16ths hex head (12mm?). The SS washers are 3/4in. dia. and the center hole is 5/16ths. Shove the bolt up into the cup from the bottom. Next I usually lock the hex head in my bench vice. Wet the leather with warm tap water for 1-2 minutes minimum, with smooth side UP thread the leather onto the bolt from the top (See pics). Place washers onto leather, thread hex nut on by hand and finish by using a deep well 7/16 socket. I usually center the leather a couple of times at the top of the cup before I tighten it up.
7. Let it sit over night; 24 hours is good. If you have some binding in the leather or 'ripples' on the side simply soak in warm water again but longer and add two or three more washers. Repeat final process. Remove nut and washers then place the leather, lightly oiled, into whatever container you want. You may need to pluck or push, with a small screwdriver or awl, the leather out of the cup as it may stick. Repeat as necessary.
STEPS:
1. Select leather. Use leather that is top grain with a rough side also. The rough side will be the side in contact with the pump tube.
2. Purchase or fabricate a 1 1/16th in. punch from 1in. dia. steel pipe 1ft. long. Cap the pipe so you can hit it with a hammer. Grind down the inner surface to a sharp edge with a cone shaped stone from a Dremel type tool. Punch out the leather. Don't worry if your punch does not go through the leather, it will leave a trace mark after hitting it with a hammer and you can cut that with scissors. NOTE: A 1 in. punch may be very close to the neoprene pump cups but I haven't narrowed that application down yet. I recall having to trim one of these down a bit to fit my red 286 a couple of months ago.
3. IF YOU HAVE A NON-STANDARD CUP NEED: Trace the diameter of a current pump cup from your GPA (assuming you have one) onto aluminum flashing (not shown) or similar including marking the center hole. Cut the template out with snips or heavy scissors. Punch or cut the center hole out of the template. Use this to trace on the leather and cut out. Cut as many as you have the need. I usually cut 6-7 and I'm done in one week and it will take me a couple months to use them up.
4. You can use the aluminum template to mark the center hole in all your cup leathers. Use a 1/4in. hole punch. If you are good at eye-balling it, go ahead. Again, leather is very forgiving.
5. COPPER CAP. Take a 3/4 in. dia. copper pipe cap and determine dead center. I'm not a plumber but the actual I.D. of the cup is 7/8ths. I suspect it is designed to accept 3/4" copper pipe so it is labeled as 3/4in.? Drill it out with a 1/16 bit then 1/16th increments until you have it out to 5/16ths.
6. The SS bolt is 1 1/2in. long and 1/4" dia. and 7/16ths hex head (12mm?). The SS washers are 3/4in. dia. and the center hole is 5/16ths. Shove the bolt up into the cup from the bottom. Next I usually lock the hex head in my bench vice. Wet the leather with warm tap water for 1-2 minutes minimum, with smooth side UP thread the leather onto the bolt from the top (See pics). Place washers onto leather, thread hex nut on by hand and finish by using a deep well 7/16 socket. I usually center the leather a couple of times at the top of the cup before I tighten it up.
7. Let it sit over night; 24 hours is good. If you have some binding in the leather or 'ripples' on the side simply soak in warm water again but longer and add two or three more washers. Repeat final process. Remove nut and washers then place the leather, lightly oiled, into whatever container you want. You may need to pluck or push, with a small screwdriver or awl, the leather out of the cup as it may stick. Repeat as necessary.
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
-
Scouterjan
- Super Colemanaholic
- Posts: 4095
- Joined: Fri Dec 12, 2008 1:14 am
Leather pump cups from scratch-Follow up W/pics
thanks Bob, great tutorial. I have heard that saddlesoap softens the leather better than water, I guess I will try making some cups as I am running out of them
Jan
Jan
Mitakiuye Oyasin " All My Relations"
Leather pump cups from scratch-Follow up W/pics
Good thread, Chuck! This should be especially handy for making some
of the off-sized cups in non-Coleman brands.
Does Neatsfoot oil offer anything for forming the leather cups?
This thread should surely be put into the archives.
of the off-sized cups in non-Coleman brands.
Does Neatsfoot oil offer anything for forming the leather cups?
This thread should surely be put into the archives.
Dean -Midnight Kerosene Ritualist--Deans Machine: Deansmachine.com
ICCC #1220. 275 commiseration #0018.
"In Him was life, and His life was the Light of men." John 1:4
ICCC #1220. 275 commiseration #0018.
"In Him was life, and His life was the Light of men." John 1:4
Leather pump cups from scratch-Follow up W/pics
I''m Larry most of the time, but today I'll be Chuck.
When the water dries, the leather will retain the cup shape.
With Neetsfoot, the leather won't dry and probably won't hold it's form as well.
The real Chuck can chime in here with his own theory.
When the water dries, the leather will retain the cup shape.
With Neetsfoot, the leather won't dry and probably won't hold it's form as well.
The real Chuck can chime in here with his own theory.
I'm Larry most of the time.
Leather pump cups from scratch-Follow up W/pics
Stay tuned, it's easier than you think. Featured in ColemanTech in the next ICCC newsletter.
Dan B. ICCC #100
The Texas Dust Bowl
Faith is not about everything turning out okay; faith is about being okay no matter how things turn out.
The Texas Dust Bowl
Faith is not about everything turning out okay; faith is about being okay no matter how things turn out.
Leather pump cups from scratch-Follow up W/pics
dbosch wrote:
Stay tuned, it's easier than you think. Featured in ColemanTech in the next ICCC newsletter.
What about us that do not get the newsletter? Not a member, Yet. This sounds like a good reason to sign up huh.
Justin ICCC #1530
facebook.com/globesbyjustin
Looking for B-day 12/82, 8/06, 1/09, 6/15
facebook.com/globesbyjustin
Looking for B-day 12/82, 8/06, 1/09, 6/15
Leather pump cups from scratch-Follow up W/pics
I have some of those green ones from Dan. They work great!
Plus, they're festive.
Plus, they're festive.
Dean -Midnight Kerosene Ritualist--Deans Machine: Deansmachine.com
ICCC #1220. 275 commiseration #0018.
"In Him was life, and His life was the Light of men." John 1:4
ICCC #1220. 275 commiseration #0018.
"In Him was life, and His life was the Light of men." John 1:4
Leather pump cups from scratch-Follow up W/pics
Hi Larry (or Chuck II) and thanks for the feedback guys. As Larry points out the water on the leather probably is more effective at shaping the leather as it dries. The bigger question might be to oil or not to oil when it's formed. I use a little 3-in-1 oil or Marvel Mystery Oil because I'm typically going to use them in a month or two and they won't loose enough shape to worry about. Too much oil and I believe they will loose form - but is it enough loss to worry about?
I'd use Neatsfoot oil or even Sno-Seal for long-term storage. No one carries Neatsfoot in this small town so I'd have to order it off the web. No hurry since even olive oil will work when its the only stuff you have.
I'd use Neatsfoot oil or even Sno-Seal for long-term storage. No one carries Neatsfoot in this small town so I'd have to order it off the web. No hurry since even olive oil will work when its the only stuff you have.
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
Leather pump cups from scratch-Follow up W/pics
I have left mine dry for months and they don't deteriorate or lose shape. The same goes for NOS ones that I've found in rat holes and the like that have obviously been dry for decades. I'd leave them dry until you use them as keeping them moist will attract dirt. As long as they are sealed up and kept dry, they shouldn't have any issues.
Dan B. ICCC #100
The Texas Dust Bowl
Faith is not about everything turning out okay; faith is about being okay no matter how things turn out.
The Texas Dust Bowl
Faith is not about everything turning out okay; faith is about being okay no matter how things turn out.
-
Loganeffecto
- Serious Colemanaholic
- Posts: 642
- Joined: Thu Oct 31, 2013 5:50 pm
Leather pump cups from scratch-Follow up W/pics
Extremely helpful!
Logan, formerly known as Fester. (It means to rot)
Leather pump cups from scratch-Follow up W/pics
Chuck, if you want a small bottle of neatsfoot oil, Jack at Lonestar Lantern has it
in small bottles for a couple-three bucks. He's on ebay as lonestarlantern. That's
where I got mine. A little goes a long way, and it's the traditional oil for leather.
"Made from cows, for cows.."![[smile]](//cdn.websitetoolbox.com/images/boards/smilies/smile.gif)
in small bottles for a couple-three bucks. He's on ebay as lonestarlantern. That's
where I got mine. A little goes a long way, and it's the traditional oil for leather.
"Made from cows, for cows.."
![[smile]](http://cdn.websitetoolbox.com/images/boards/smilies/smile.gif)
Dean -Midnight Kerosene Ritualist--Deans Machine: Deansmachine.com
ICCC #1220. 275 commiseration #0018.
"In Him was life, and His life was the Light of men." John 1:4
ICCC #1220. 275 commiseration #0018.
"In Him was life, and His life was the Light of men." John 1:4
Leather pump cups from scratch-Follow up W/pics
Dean, for some reason I just found that VERY funny! "Made from cows, for cows?"![[rofl]](http://img.photobucket.com/albums/v300/Murff/Emoticons/rofl.gif "ROFL - :rofl:")
Thanks for the laugh!!! I've purchased from Jack before - good guy and I will get some from him.
Dan B., storing them dry...yup, they will last. I'm inclined to use a little SnoSeal for long term storage. May not be necessary but that's just my inclination.
Thanks for the laugh!!! I've purchased from Jack before - good guy and I will get some from him.Dan B., storing them dry...yup, they will last. I'm inclined to use a little SnoSeal for long term storage. May not be necessary but that's just my inclination.
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
Leather pump cups from scratch-Follow up W/pics
I found a big ole bottle of neatsfoot at the baseball section around the catching mitts at Academy or Wally world (can't remember). Another place to search.
Dan B. ICCC #100
The Texas Dust Bowl
Faith is not about everything turning out okay; faith is about being okay no matter how things turn out.
The Texas Dust Bowl
Faith is not about everything turning out okay; faith is about being okay no matter how things turn out.
Leather pump cups from scratch-Follow up W/pics
Chuck, I was looking for some neatsfoot oil on the web once, and besides the retailers
there was a link to some general info, and something from some older books, too. I
didn't know why it was called neatsfoot, but reading about it, the book said "neats",
or "neat" meant to do with cattle or cows, and the oil was rendered from cow's
shin or foot bones.
So, git out thar 'n round up them neats. And, I like that neatboy hat your wearin', pard.
there was a link to some general info, and something from some older books, too. I
didn't know why it was called neatsfoot, but reading about it, the book said "neats",
or "neat" meant to do with cattle or cows, and the oil was rendered from cow's
shin or foot bones.
So, git out thar 'n round up them neats. And, I like that neatboy hat your wearin', pard.
Dean -Midnight Kerosene Ritualist--Deans Machine: Deansmachine.com
ICCC #1220. 275 commiseration #0018.
"In Him was life, and His life was the Light of men." John 1:4
ICCC #1220. 275 commiseration #0018.
"In Him was life, and His life was the Light of men." John 1:4
Leather pump cups from scratch-Follow up W/pics
OK, I propose a new rule. No more homemade tools or parts. Now I have to find the way to build pump cups. Does it ever end?
As far as the leather 1.5-2mm range leather falls into the 4/5 oz leather thickness. 1oz equals 1/64" so 4/5oz would be fairly close to the 1.5-2mm that is recommended most places. When buying leather from a leather shop they usually list it by weight instead of thickness. Just my 2¢
As far as the leather 1.5-2mm range leather falls into the 4/5 oz leather thickness. 1oz equals 1/64" so 4/5oz would be fairly close to the 1.5-2mm that is recommended most places. When buying leather from a leather shop they usually list it by weight instead of thickness. Just my 2¢
Justin ICCC #1530
facebook.com/globesbyjustin
Looking for B-day 12/82, 8/06, 1/09, 6/15
facebook.com/globesbyjustin
Looking for B-day 12/82, 8/06, 1/09, 6/15
Leather pump cups from scratch-Follow up W/pics
If anyone has a Hobby Lobby near them all of their leather stuff is 30% off right now. I just picked up 3lbs of scrap leather for a little over $6. I just started on my first 3 cups and I'm thinking I can make at least 100 pump cups out of all this leather if not more. I also picked up a leather punch set for a little over $4.
-Cain-
I lift my lamp beside the golden door.
ICCC Member # 1288
I lift my lamp beside the golden door.
ICCC Member # 1288
Leather pump cups from scratch-Follow up W/pics
CAIN! You are rockin' on those pump cups! Yes, many standard size punch sets can be had wherever fine China punches are sold.
I should probably use some of my holiday vacation time to follow suit but it's just been so cold. I spend the first 30 minutes of my 'hobby time' in my garage just getting it heated -- to 40 deg.F!
I should probably use some of my holiday vacation time to follow suit but it's just been so cold. I spend the first 30 minutes of my 'hobby time' in my garage just getting it heated -- to 40 deg.F!
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
Leather pump cups from scratch-Follow up W/pics
I like to have hobbies WITHIN hobbies! lol I've got a few with the neoprene cups I'd like to change out as they suck in this cold weather.
-Cain-
I lift my lamp beside the golden door.
ICCC Member # 1288
I lift my lamp beside the golden door.
ICCC Member # 1288
Leather pump cups from scratch-Follow up W/pics
If anyone is thinking about doing this I just made 3 and replaced the neoprene in my sons birthday 288 and it works like a charm! Thanks Chuck!
-Cain-
I lift my lamp beside the golden door.
ICCC Member # 1288
I lift my lamp beside the golden door.
ICCC Member # 1288
Leather pump cups from scratch-Follow up W/pics
Fuzzfarmer wrote: Using this method, how do you "pluck" the leather and washers out after its dry?
![[sCo_idk]](http://img.photobucket.com/albums/v300/Murff/Emoticons/sCo_idk.gif "Got Me - :shrug:")
I unthread the hex nuts, remove the bolt, then use a small screw driver and push up from the bottom through the hole. Sometimes I use an awl to push it up.
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
-
Junkboy999
- Member
- Posts: 36
- Joined: Sun Jul 14, 2013 6:48 pm
Leather pump cups from scratch-Follow up W/pics
Ohhhh I like the green ones as well...
Terry Aka Junkboy999
ICCC#1327, 275 ASM #0999 Coleman BLue #999
Looking for Coleman 2 burner stove or tank dated 5-64.
ICCC#1327, 275 ASM #0999 Coleman BLue #999
Looking for Coleman 2 burner stove or tank dated 5-64.
Leather pump cups from scratch-Follow up W/pics
ChuckDynasty wrote: Another thread I'm saving to pdf for future reference. Thanks Chuck!
No problem...Chuck.
![[iconbeer]](http://img.photobucket.com/albums/v300/Murff/Emoticons/iconbeer.gif "Share - :Share:")
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
Leather pump cups from scratch-Follow up W/pics
Wow Chuck! So far I've been lucky with leather pump cups. But as the collections grows I'm sure I'll turn to this as a reference.
Serdar
ICCC #1325
ICCC #1325
-
Rfieldbuilds
- Serious Colemanaholic
- Posts: 502
- Joined: Sun Nov 05, 2017 5:12 pm
Leather pump cups from scratch-Follow up W/pics
Chucker. Revive on this old thread. Can you repost the first two images sine PB has nixed them? That'd be helpful. Need cups, dont want to wait for shipping. Million other things to do today, but lanterns have a way of working themselves into the honey do list when I can get away wih it.
Randy
QL #15, Slant Saver #59, #0269 Turd Hurdler, #0269 Mil Spec Syndicate, Coleman Blues 243 #0269, BernzOmatic Appreciation Club #072, Sears Traveler 2.0 Host #1, and a few others too.
QL #15, Slant Saver #59, #0269 Turd Hurdler, #0269 Mil Spec Syndicate, Coleman Blues 243 #0269, BernzOmatic Appreciation Club #072, Sears Traveler 2.0 Host #1, and a few others too.
Leather pump cups from scratch-Follow up W/pics
Hello Rand? I don't recall ever using FB but I may have. I think after so long images get nixed here automatically to keep from taking up too much space on the forum.
Anyway - we have just purchased a new computer and I will have to ask my step-son to pull those off the old one. I may have them on my work puter as well and I'll look tomorrow.
The pics were just a pic of scrap leather, ss bolt and washers, 3/4 in. copper end cap, a punch I ground of of 1 in. galvanized pipe, and heavy scissors. Not a big help I know but that what I used.
I'm glad to answer any questions about the tools, materials, and process if you want to PM me.
Anyway - we have just purchased a new computer and I will have to ask my step-son to pull those off the old one. I may have them on my work puter as well and I'll look tomorrow.
The pics were just a pic of scrap leather, ss bolt and washers, 3/4 in. copper end cap, a punch I ground of of 1 in. galvanized pipe, and heavy scissors. Not a big help I know but that what I used.
I'm glad to answer any questions about the tools, materials, and process if you want to PM me.
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
-
Rfieldbuilds
- Serious Colemanaholic
- Posts: 502
- Joined: Sun Nov 05, 2017 5:12 pm
Leather pump cups from scratch-Follow up W/pics
Ok. Thats helpful. Yeah, it looks like they check out ywere published yo this site from Photo Bucket rather than Favebook if that helps. Check out the first two photos in this thread. They are missing. Thank You in advance.
What sized ss washers might those have been? Std for 1/4” bolt? WAIT. now I see you used 3/4” Dia washers. Thank You.
What sized ss washers might those have been? Std for 1/4” bolt? WAIT. now I see you used 3/4” Dia washers. Thank You.
Randy
QL #15, Slant Saver #59, #0269 Turd Hurdler, #0269 Mil Spec Syndicate, Coleman Blues 243 #0269, BernzOmatic Appreciation Club #072, Sears Traveler 2.0 Host #1, and a few others too.
QL #15, Slant Saver #59, #0269 Turd Hurdler, #0269 Mil Spec Syndicate, Coleman Blues 243 #0269, BernzOmatic Appreciation Club #072, Sears Traveler 2.0 Host #1, and a few others too.
Leather pump cups from scratch-Follow up W/pics
P.S. I only used a ss bolt and washers since the leather was to be soaked in water every time. Regular grade 5 steel bolt, nut, and washers is fine.
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
Leather pump cups from scratch-Follow up W/pics
I am posting here because I need to make some pump cups that are no longer available. The photo bucket photos do not appear for me. Might there be an alternative for the photo's for this thread so we can all see the photo's. As time go's on I believe this thread will become more important for all of us.
[img]https://i.postimg.cc/cCNVqNmL/Peek-Over-Fense-rkscarediv-e0.gif[/img]
Stephen - Florida
Stephen - Florida
Leather pump cups from scratch-Follow up W/pics
Stephen,
The pictures are visible if you apply the fix for Firefox or Chrome. See the link in this thread:
http://www.colemancollectorsforum.com/post/photobucket-fix-for-chrome-and-ff-9286417?highlight=photobucket+fix&pid=1301950881
-Jim
I threw a boomerang a couple years ago; I know live in constant fear.
Flammable liquids, open flame, what could go wrong?
I threw a boomerang a couple years ago; I know live in constant fear.
Flammable liquids, open flame, what could go wrong?
-
Hot_Diggity
- Super Colemanaholic
- Posts: 1802
- Joined: Mon Jun 12, 2017 6:43 pm
Leather pump cups from scratch-Follow up W/pics
Sweet! Thanks Chuck. Now that I know how to whip up a tool so easily I'll have to see how horsehide pump cups work. I was waiting for it to get cold, but you have renewed my interest.
I'm thinking the horsehide might last forever.
I'm thinking the horsehide might last forever.
Chuck, 3/61, ICCC 1689
Milspec Syndicate #510
Coleman 275 Appreciation Syndicate #0510
Coleman Quick Lite Crew #12
BernzOmatic Appreciation Club #510
Coleman Slant Saver #510
Frank Appreciation Syndicate Member #2
Tinker, Toy maker, Trash picker, Wickie, Lamp loon
Milspec Syndicate #510
Coleman 275 Appreciation Syndicate #0510
Coleman Quick Lite Crew #12
BernzOmatic Appreciation Club #510
Coleman Slant Saver #510
Frank Appreciation Syndicate Member #2
Tinker, Toy maker, Trash picker, Wickie, Lamp loon
Leather pump cups from scratch-Follow up W/pics
Since "This post is too old to edit..." I'm uploading the pics again from my PC...Hope this helps.
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
-
SteveRetherford
- Super Colemanaholic
- Posts: 8255
- Joined: Thu Dec 11, 2008 11:12 pm
Leather pump cups from scratch-Follow up W/pics
some time back now Dan Boschen sent me a few of his homemade leather pump cups . well i needed a 427 penis style pump cup yesterday . there a smaller diameter than regular pump cups . i found the baggie of em with Boschen written on the bag , and sure enough i found a little green pump cup that fits n worked perfectly !!! thanks again Dan !!!
![[DrSteve2]](https://d28lcup14p4e72.cloudfront.net/50792/4217452/DrSteve2.jpg)
Steve , Keeper of the Light !!!Leather pump cups from scratch-Follow up W/pics
Dan is good people.
I'm thinking some of those Euro lantern pump cups fit the 427's as well - maybe Petromax or Vapalux, don't recall. Often you only need to enlarge the hole to make it work.
I'm thinking some of those Euro lantern pump cups fit the 427's as well - maybe Petromax or Vapalux, don't recall. Often you only need to enlarge the hole to make it work.
Chuck
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
"...Good people pass away; the godly often die before their time. But no one seems to care or wonder why. No one seems to understand that God is protecting them from the evil days to come." Isaiah 57:1-2
Eye-SEE-C-C Member #1333 -- MilSpecOps #003
"Michigan - from the Ojibwa word “meicigama,” meaning “great water.”
-
Majicwrench
- Super Colemanaholic
- Posts: 3168
- Joined: Mon Jul 30, 2012 9:33 pm
Leather pump cups from scratch-Follow up W/pics
My home-made pump cups don't look quite like those in Steve's post above.....
Keith
